Planetary Assembly: Assembly

Install the lower one-way ring.

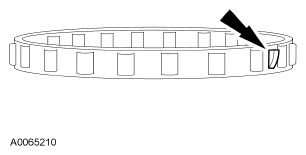

Fig 1: Locating Lower One-Way Ring
Courtesy of FORD MOTOR CO.
Inspect the rollers and the springs of the one-way clutch.

Fig 2: Locating Rollers And Springs Of One-Way Clutch
Courtesy of FORD MOTOR CO.
Make sure the low one-way clutch is installed with the tab pointing in the direction as shown.

Fig 3: Locating Point Direction
Courtesy of FORD MOTOR CO.
Install the low one-way clutch.

Fig 4: Locating Low One-Way Clutch
Courtesy of FORD MOTOR CO.
Install the top one-way clutch ring.

Fig 5: Locating Top One-Way Clutch Ring
Courtesy of FORD MOTOR CO.
Install the top retainer of the one-way clutch.

Fig 6: Locating Top Retainer
Courtesy of FORD MOTOR CO.
Install the forward planet assembly.

Fig 7: Locating Forward Planet Assembly
Courtesy of FORD MOTOR CO.
Install the thrust bearing.

Fig 8: Locating Thrust Bearing
Courtesy of FORD MOTOR CO.
Inspect the front sun gear retaining ring.

Fig 9: Locating Front Sun Gear Retaining Ring
Courtesy of FORD MOTOR CO.
Install the forward planet sun gear.

Fig 10: Locating Forward Planet Sun Gear
Courtesy of FORD MOTOR CO.
Install the thrust bearing.

Fig 11: Locating Thrust Bearing
Courtesy of FORD MOTOR CO.
Install the rear planet assembly.

Fig 12: Locating Rear Planet Assembly
Courtesy of FORD MOTOR CO.
Install the snap ring.

Fig 13: Locating Snap Ring
Courtesy of FORD MOTOR CO.
