Transfer Shaft: Disassembly

  1. Using the special tools, remove the RH transfer shaft gear bearing.

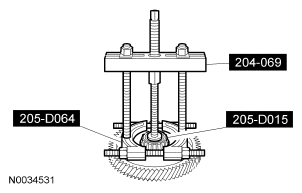

    Fig 1: Identifying Special Tools (204-069, 205-D015, 205-D064) Into RH Transfer Shaft Gear Bearing
    G04652898Courtesy of FORD MOTOR CO.
  2. Using the special tool and a press, remove the LH transfer shaft gear bearing while separating the gears.

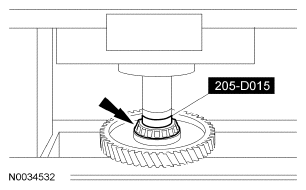

    Fig 2: Identifying Special Tool (205-015) Into LH Transfer Shaft Gear Bearing
    G04652899Courtesy of FORD MOTOR CO.
