Transmission Fluid Pan: Notes

MATERIALS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) MERCON® V
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A
Ultra Silicone Sealant TA-29 -

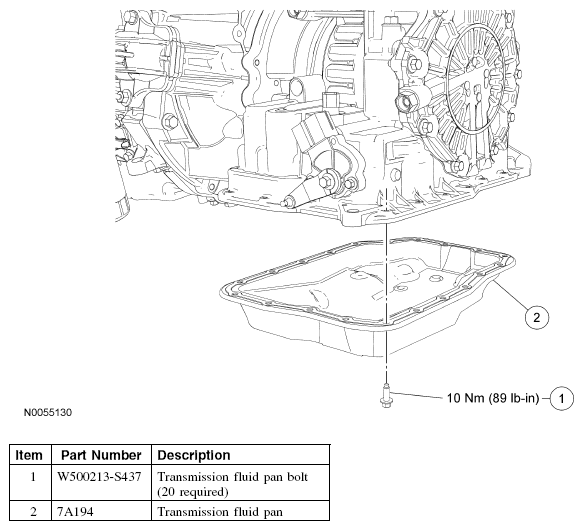

Fig 1: Transmission Fluid Pan Replacement Components With Torque Specifications
G04652697Courtesy of FORD MOTOR CO.
