Vehicle Identification Number

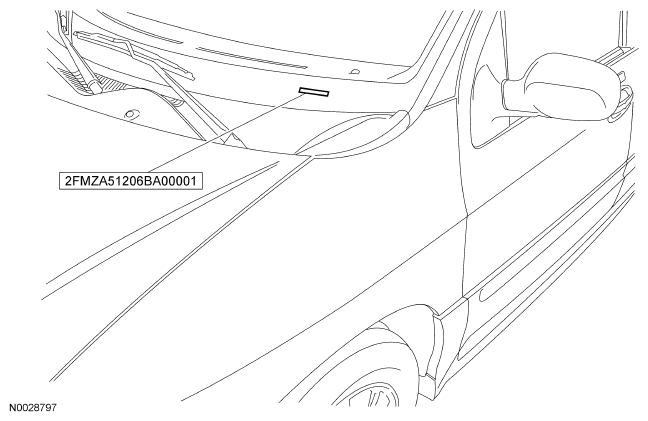

Fig 1: Identifying Vehicle Identification Number (VIN) Location

Courtesy of FORD MOTOR CO.

The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted on the instrument panel, top upper left of the dash. The VIN is also found on the vehicle certification (VC) label.

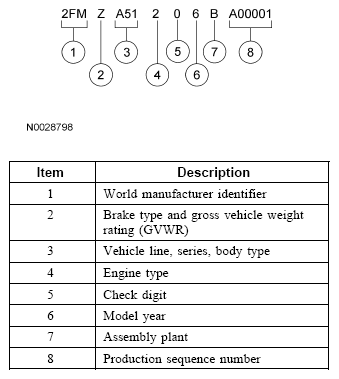

Fig 2: Identifying Vehicle Identification Number With Description

Courtesy of FORD MOTOR CO.

Fig 3: Identifying World Manufacturer Identifier

Courtesy of FORD MOTOR CO.

Vehicle identification number (VIN) positions 1 through 3 indicate the world manufacturer identifier (WMI).

• 2FM - Ford Motor Company - Canada, multi-purpose vehicle
• 2FT - Ford Motor Company - Canada, truck (completed vehicle)
• 2MR - Ford Motor Company (Mercury) - Canada, multi-purpose vehicle
  Fig 4: Identifying Brake Identification Number

  Courtesy of FORD MOTOR CO.

The fourth VIN position identifies the brake type and gross vehicle weight rating (GVWR).

• D - Hydraulic brakes - 5,001-6,000 pounds (GVWR) - driver and front passenger air bags - driver and front passenger side impact air bags and canopies
• Z - Hydraulic brakes - 5,001-6,000 pounds (GVWR) - driver and front passenger air bags
  Fig 5: Identifying Line And Series Identification Number

  Courtesy of FORD MOTOR CO.

  VIN positions 5 through 7 indicate the vehicle line and series.

• A50 - Base - Freestar
• A51 - SE - Freestar
• A52 - SEL - Freestar
• A54 - Van - Freestar
• A55 - SE (Canada) - Freestar
• A56 - SEL (Canada) - Freestar
• A57 - SES - Freestar
• A57 - Sport (Canada) - Freestar
• A58 - Limited - Freestar
• A21 - Convenience - Monterey
• A23 - Premier - Monterey
  Fig 6: Identifying Engine Code

  Courtesy of FORD MOTOR CO.

  The eighth VIN position is the engine type (displacement and number of cylinders).

• 2 - 4.2L, OHV, EFI, 6 cylinder
• 6 - 3.9L, OHV, EFI, 6 cylinder
  Fig 7: Identifying Check Digit

  Courtesy of FORD MOTOR CO.

  The ninth VIN position is a computer-generated check digit.

  Fig 8: Identifying Model Year Code

  Courtesy of FORD MOTOR CO.

  The tenth VIN position is the model year code.

• 6 - 2006
  Fig 9: Identifying Assembly Plant Code

  Courtesy of FORD MOTOR CO.

  The eleventh VIN position is the assembly plant code.

• B - Oakville - Oakville, Ontario (Canada)
  Fig 10: Identifying Vehicle Build Sequence Code

  Courtesy of FORD MOTOR CO.

  VIN positions 12 through 17 are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number.

• Ford - A00001-F99999
• Mercury - J00001-L99999
