Restraints Control Module (RCM): Notes

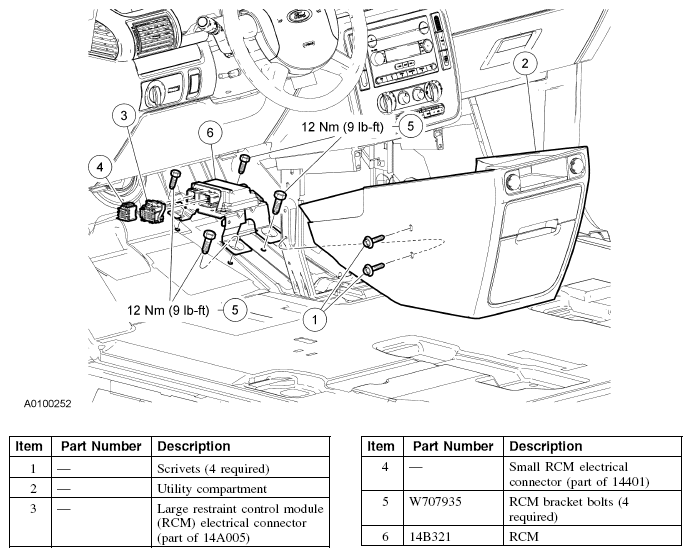

Fig 1: Restraints Control Module (RCM) Replacement Components With Torque Specifications
G04663942Courtesy of FORD MOTOR CO.
