Seat Backrest - Front: Notes

SPECIAL TOOL(S)

G04663359Courtesy of FORD MOTOR CO.
Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool
NOTE: Low-back seat shown, hi-back seat similar.
NOTE: Driver side shown, passenger side similar.

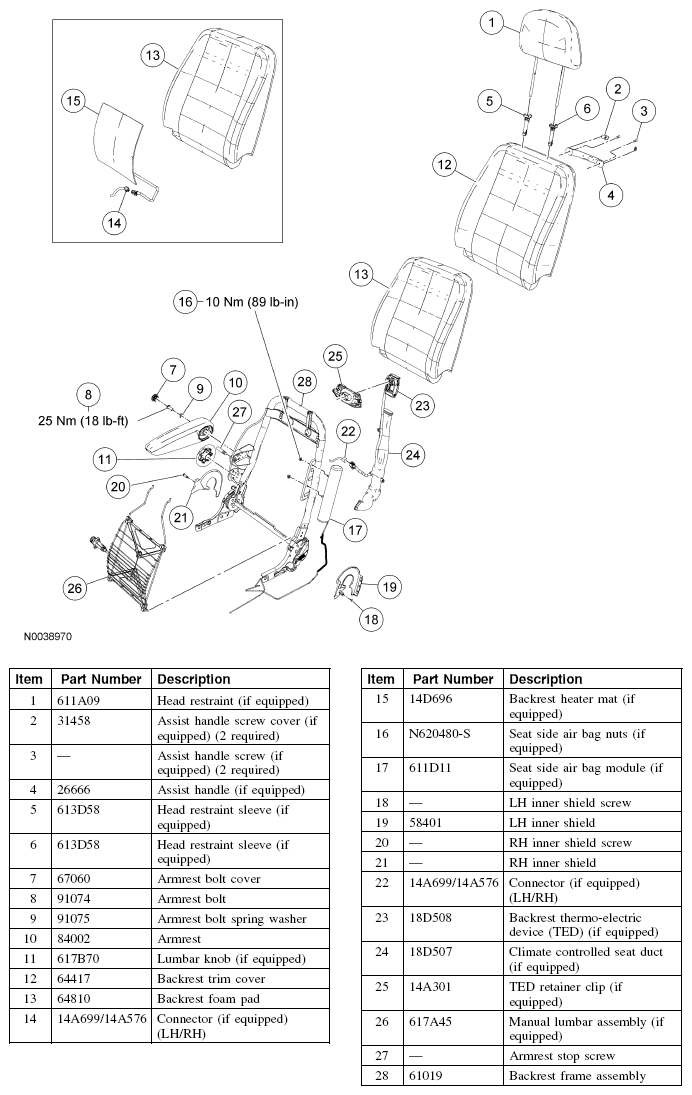

Fig 1: Exploded View Of Seat Backrest - Front With Torque Specifications
G04663360Courtesy of FORD MOTOR CO.
