Seat Backrest - Third Row: Notes

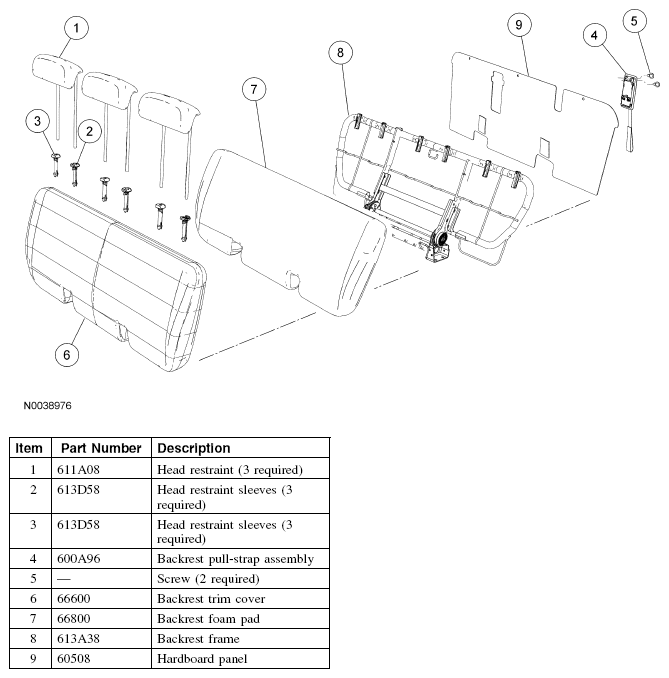

Fig 1: Exploded View Of Rear Seat Backrest - Third Row
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
