Removal and Installation
WARNING:
Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in personal injury.
CAUTION:
Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
CAUTION:
Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.
NOTE:
When installing a new ABS module, it must be configured (using vehicle as-built data) and calibrated. Follow the scan tool directions for the calibration procedures. For module configuration, refer to MODULE CONFIGURATION
.

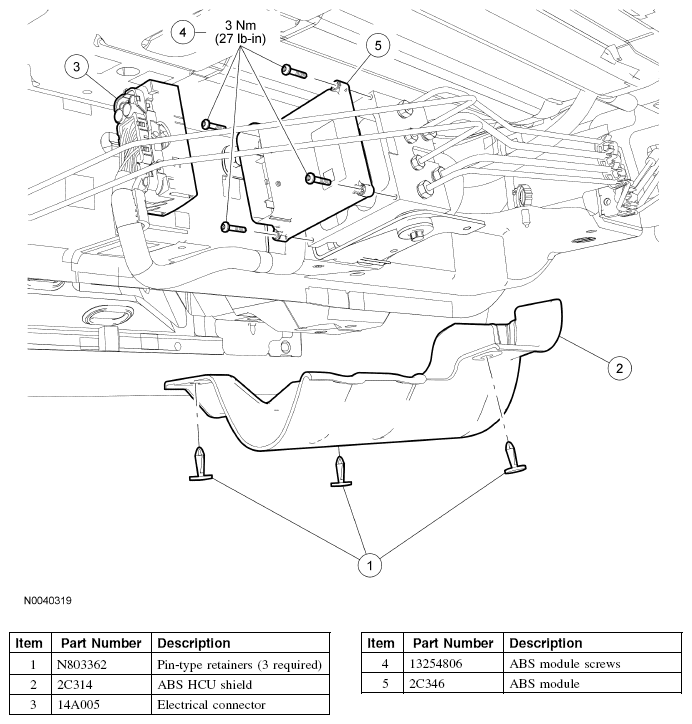

- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Disconnect the HCU electrical connector.
- Remove the 4 ABS module screws.
- To install, tighten to 3 Nm (27 lb-in).
- Remove the ABS module.
- To install, reverse the removal procedure.
