Removal and Installation

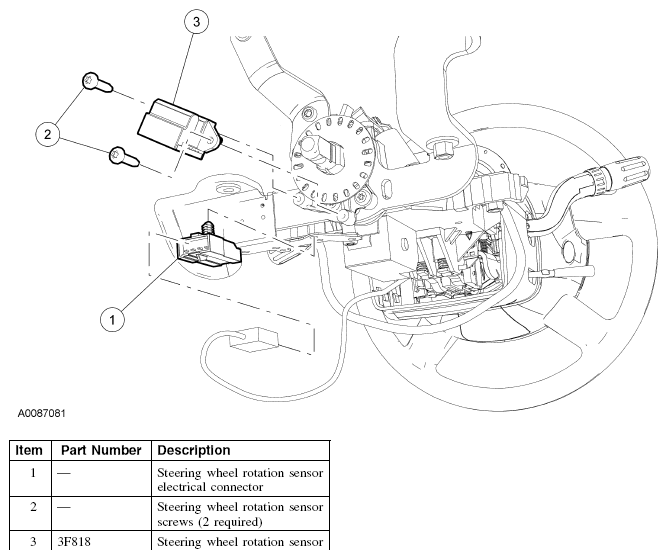

Fig 1: Identifying Steering Wheel Rotation Sensor Components

Courtesy of FORD MOTOR CO.

NOTE: When installing a new steering wheel rotation sensor, the anti-lock brake system (ABS) module must be configured (using vehicle as-built data) and calibrated. Follow the scan tool directions for the calibration procedures. For module configuration, refer to MODULE CONFIGURATION .

Disconnect the steering wheel rotation sensor electrical connector.
Remove the 2 steering wheel rotation sensor screws.
Remove the steering wheel rotation sensor.
To install, reverse the removal procedure.
