Starter Motor: Notes

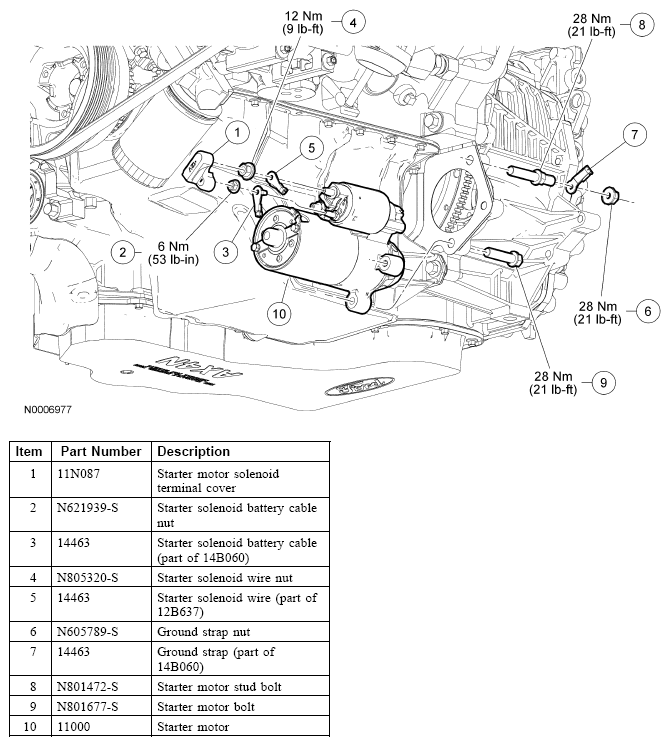

Fig 1: Identifying Starter Motor Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
