Exhaust Gas Recirculation (EGR) System Components - Exploded View

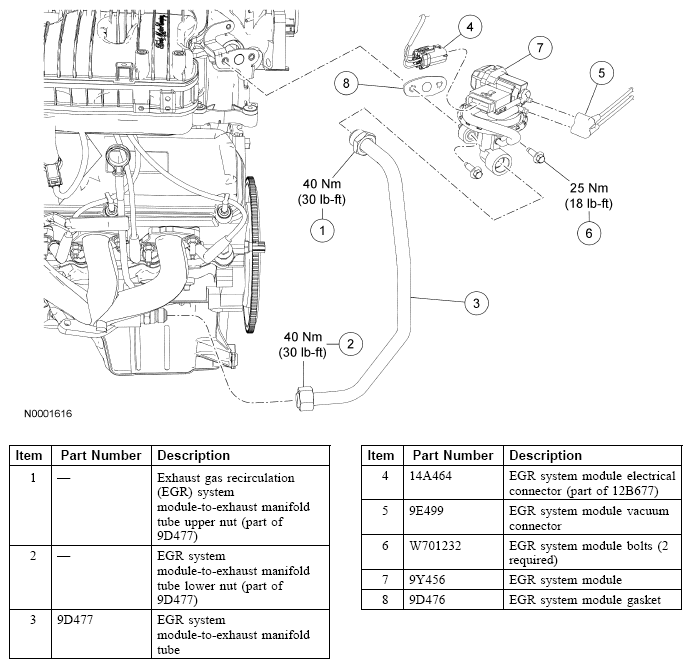

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components
G04660867Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure in this article.
