Cylinder Head - RH: Notes

MATERIALS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W-20-LSP12 (Canada); or equivalent WSS-M2C930-A
Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Fig 1: Cylinder Head Replacement Components -- RH With Torque Specifications
G04660369Courtesy of FORD MOTOR CO.


MATERIALS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A
Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -

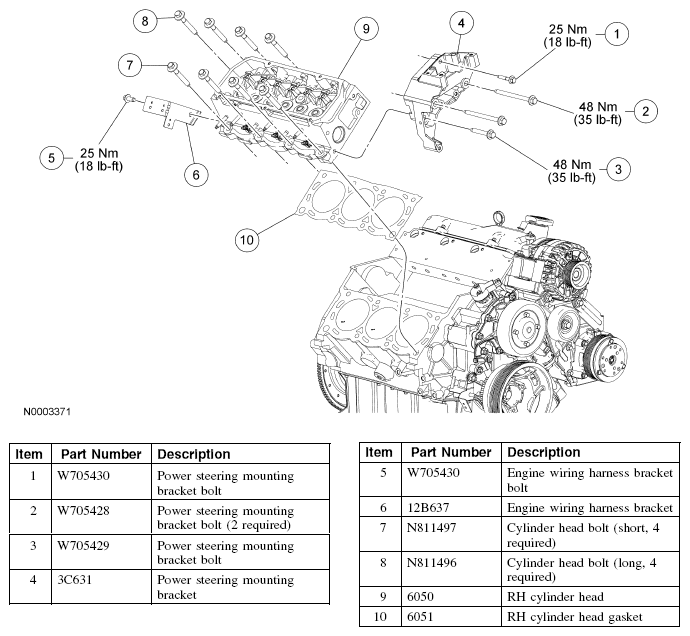

Fig 1: Cylinder Head Replacement Components -- RH With Torque Specifications
G04660379Courtesy of FORD MOTOR CO.
