Oil Pressure Sender: Notes

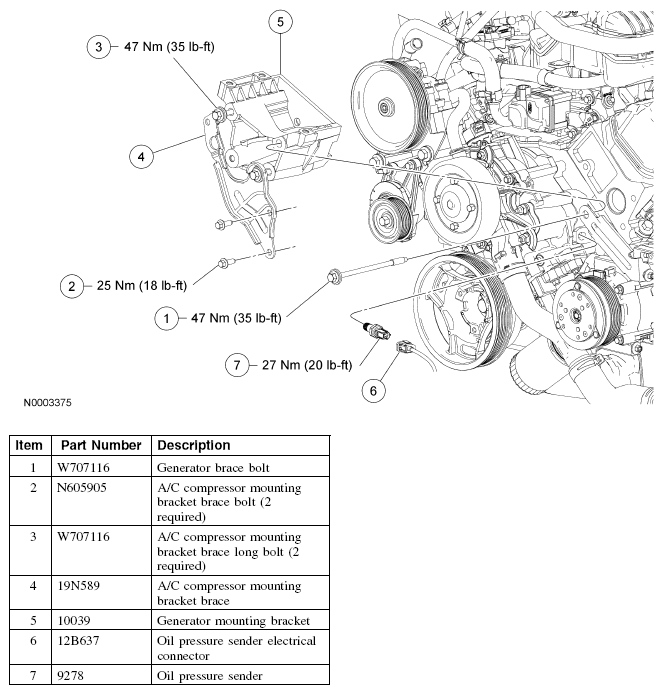

Fig 1: Oil Pressure Sender Replacement Components With Torque Specifications

G04660406

Courtesy of FORD MOTOR CO.
