Valve Cover - LH: Notes

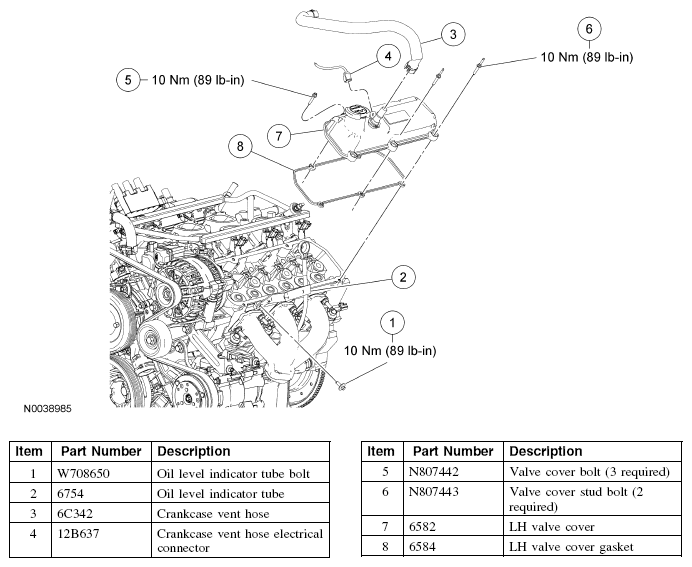

Fig 1: Valve Cover Replacement Components -- LH With Torque Specifications

G04660285

Courtesy of FORD MOTOR CO.
