Fuel Rail and Fuel Injector - Exploded View

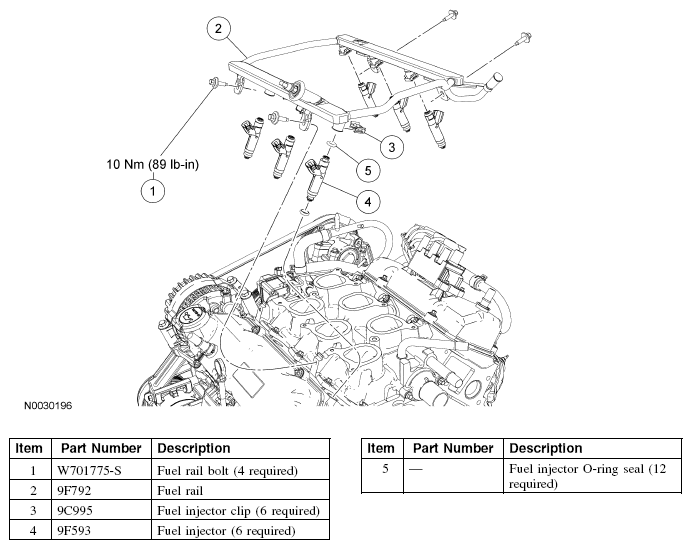

Fig 1: Exploded View Of Fuel Rail And Fuel Injector
G04660819Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
