Camshaft Position (CMP) Sensor and Synchronizer - Exploded View

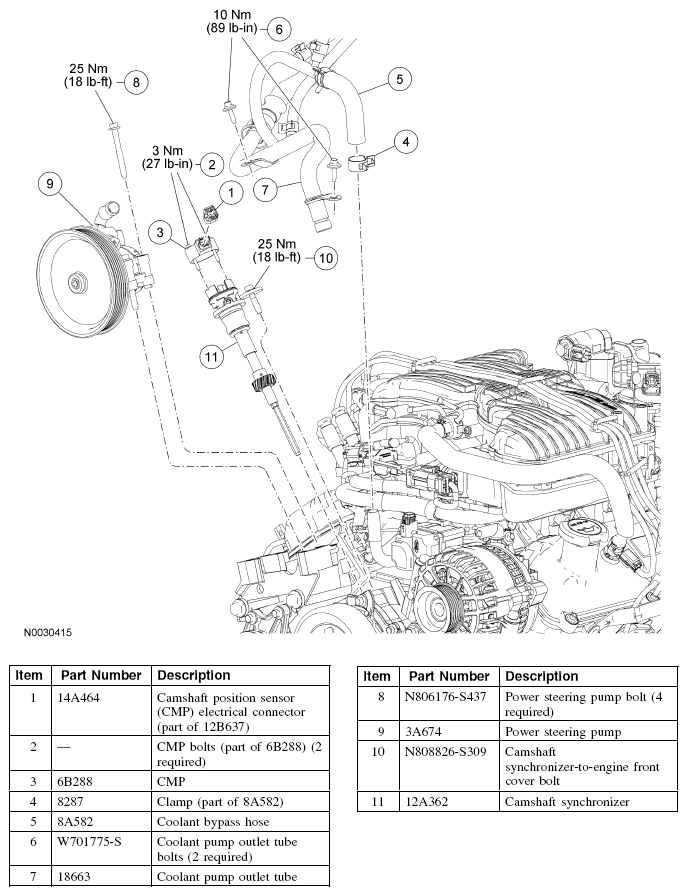

Fig 1: Exploded View Of Camshaft Position (CMP) Sensor And Synchronizer With Torque Specification's

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
