Idle Air Control (IAC) Valve: Notes

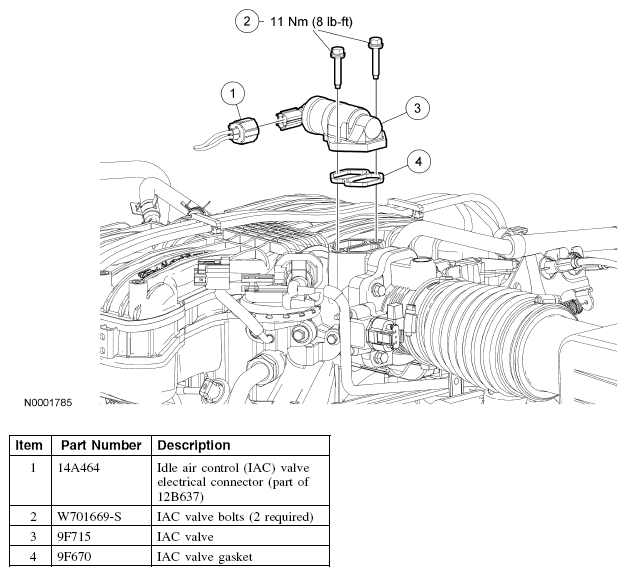

Fig 1: Idle Air Control (IAC) Valve Replacement Components With Torque Specifications
G04660895Courtesy of FORD MOTOR CO.
