2.3L 4V Focus

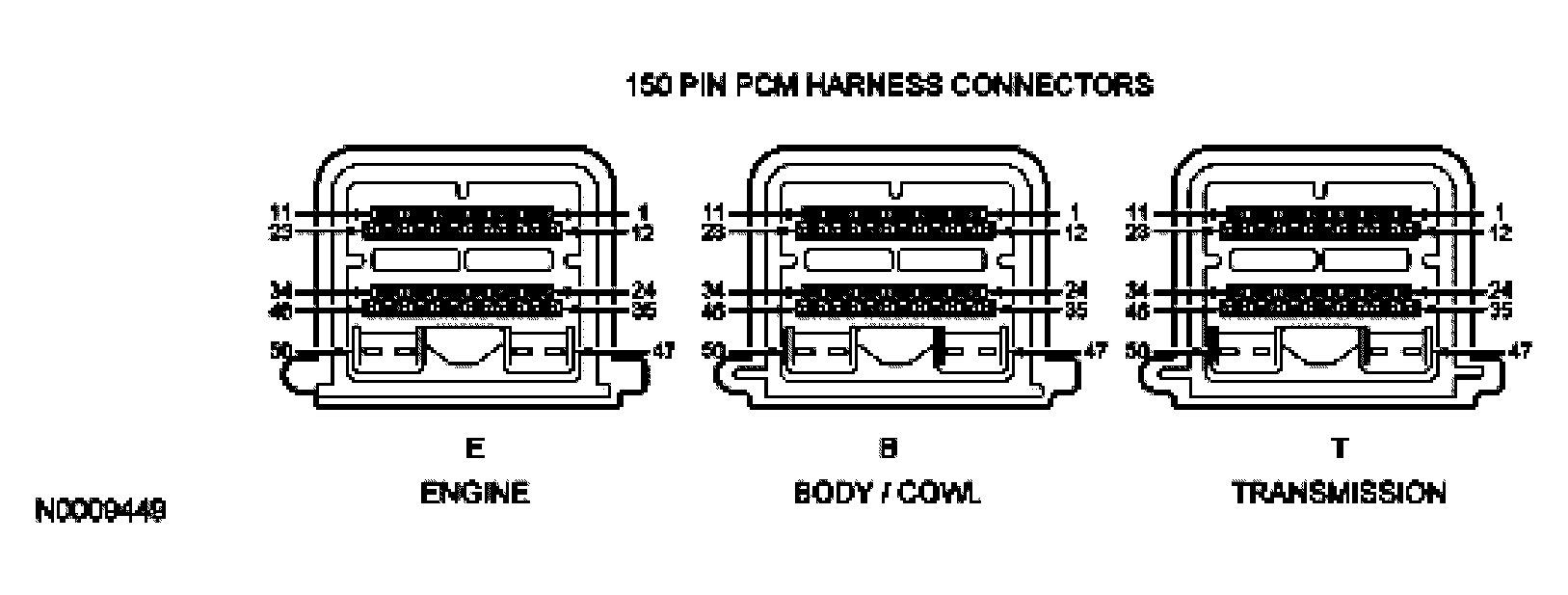

Fig 1: Powertrain Control Module Connector Terminal Identification
G04587357Courtesy of FORD MOTOR CO.
SENSORS/INPUTS - 2.3L 4V FOCUS

Sensors/Inputs PCM Pin/PID only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
ACCS B3 0.1/OFF VBAT/ON (A) 0.1/OFF 0.1/OFF DCV/OFF-ON
BPS B8 0.1/OFF VBAT/ON (E) 0.1/OFF 0.1/OFF DCV/OFF-ON
FTP V/FTP B9 2.6/0 2.6/0 2.6/0 2.6/0 DCV/IN-H20
PSP B15 0.5 3.75 (I) 0.5 0.5 DCV
IAT (K) B20 1.7-3.7/122-50 1.7-3.7/122-50 1.7-3.7/122-50 1.7-3.7/122-50 DCV/DEG
FPM B21 0.1-VBAT / 0-100 0.1-VBAT / 0-100 0.1-VBAT / 0-100 0.1-VBAT / 0-100 DCV/%
ACP B26 VBAT/OPEN VBAT/OPEN VBAT/OPEN VBAT/OPEN DCV/OPEN-CLOSED
MAF V B32 0 0.81-0.9 1-1.6 1.3-2.3 DCV
PATSIN B42 (S) (S) (S) (S) (S)
FEPS B44 0.09 0.09 0.09 0.09 DCV
GENLI E15 0-200/0-100 0-200/0-100 0-200/0-100 0-200/0-100 Hz/%
TP V E19 0.7-1.2 0.7-1.2 1-1.3 1.1-1.9 DCV
MAP E23 4 1.0-1.4 1.8-2.1 1.9-2.3 DCV
CMP E25 0 12-15 29-35 36-40 Hz
HO2S11 E30 0 switching (C) switching (C) switching (C) DCV
FRT E31 0.5-3/220-110 0.5-3/220-110 0.5-3/220-110 0.5-3/220-110 DCV/DEG F
KS E32 0 0 0 0 DCV
CHT E33 4.5-1/240-160 4.5-1/240-160 4.5-1/240-160 4.5-1/240-160 DCV/DEG
CKP E34 0 420-455 770-900 1200-1400 Hz
FRP V/FRP E37 3.2/48 3.9/60 3.9/60 3.9/60 DCV/PSI
IMRCM E42 0.1 0.1 VBAT VBAT DCV
OSS T3 0 0 67/400 120/730 Hz/RPM
CPP/PNP T16 VBAT VBAT 5/OFF 5/OFF DCV/OFF-ON
HO2S12 T24 0.1 (D) (D) (D) DCV
FLI (H) PID 50 50 50 50 %
FRT PID 50-120 (K) 50-120 (K) 50-120 (K) 50-120 (K) DEG
LOAD PID (L) 10-20 20-31 25-52 %
MISF PID OFF OFF OFF OFF OFF-ON
OCTADJS PID NO RETARD NO RETARD NO RETARD NO RETARD NO RETARD/RETARD
RPM PID 0 730-790 1450-1630 1750-2100 RPM
VSS PID 0 0 30 55 MPH
ACTUATORS/OUTPUTS - 2.3L 4V FOCUS

Actuators/Outputs PCM Pin/PID only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
PATSTRT B2 (S) (S) (S) (S) (S)
MFC B4 DCV/OFF 0.1/ON (B) DCV/OFF DCV/OFF DCV/OFF-ON
FP B12 3.6/75 1.5/33 1.5/33 1.5/33 DCV/%
EVAPC V B13 VBAT/0 VBAT/0 VBAT/0 (R) VBAT/0 (R) DCV/%
ACCR (WAC) B25 VBAT/OFF 0.1/ON (A) VBAT/OFF VBAT/OFF DCV/OFF-ON
PATS OUT B31 (S) (S) (S) (S) (S)
EVMV B34 0 0 500-900 (F) 500-900 (F) mA
PATSIL B37 (S) (S) (S) (S) (S)
HFC B38 VBAT/OFF 0.1/ON (B) VBAT/OFF VBAT/OFF DCV/OFF-ON
LFC B39 VBAT/OFF 0.1/ON (B) VBAT/OFF VBAT/OFF DCV/OFF-ON
CD1A (CYL 1) E1 VBAT VBAT VBAT VBAT DCV
INJ1 E2 0 2.3-3.0 4.1-8 4.4-10.1 mS
INJ2 E3 0 2.3-3.0 4.1-8 4.4-10.1 mS
INJ3 E4 0 2.3-3.0 4.1-8 4.4-10.1 mS
INJ4 E5 0 2.3-3.0 4.1-8 4.4-10.1 mS
EGRMC 1 E8 0.5-VBAT 0.5-VBAT 0.5-VBAT 0.5-VBAT DCV
EGRMC 2 E9 0.5-VBAT 0.5-VBAT 0.5-VBAT 0.5-VBAT DCV
EGRMC 3 E10 0.5-VBAT 0.5-VBAT 0.5-VBAT 0.5-VBAT DCV
EGRMC 4 E11 0.5-VBAT 0.5-VBAT 0.5-VBAT 0.5-VBAT DCV
CD2D (CYL 2) E12 VBAT VBAT VBAT VBAT DCV
GENRC E14 0 130/45 130/45 130/45 Hz/%
CD3B (CYL 3) E24 VBAT VBAT VBAT VBAT DCV
IMTV E26 VBAT/OFF VBAT/OFF VBAT/OFF VBAT/OFF DCV/OFF-ON
CD4C (CYL 4) E35 VBAT VBAT VBAT VBAT DCV
IAC-RC E38 9.3-10/26-34 9.8-10.5/32-40 8-11.1/24-42 (L) 6-7/19-23 (L) DCV/%
IMRC E43 0.1/ON 0.1/ON VBAT/OFF VBAT/OFF DCV/ON-OFF
HTR11 E49 VBAT/OFF (O) 0.1/ON 0.1/ON 0.1/ON DCV/OFF-ON
IAC E50 VBAT/0 10.2-11.5/28-34 8-10.8/43-60 (L) 6-8/60-70 (L) DCV/%
HTR12 T47 VBAT/OFF (O) 0.1/ON 0.1/ON 0.1/ON DCV/OFF-ON
LONGFT1 PID (-)20-(+)20 (-)20-(+)20 (-)20-(+)20 (-)20-(+)20 %
SHRTFT1 PID (L) (-)10-(+)10 (-)10-(+)10 (-)10-(+)10 %
SPARKADV PID 0 15-22 28-35 25-35 DEG
TCIL PID OFF OFF OFF OFF OFF-ON
OTHER - 2.3L 4V FOCUS

Other PCM Pin/PID only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
VPWR B35/36 VBAT VBAT VBAT VBAT DCV
BVREF B/E40 5 5 5 5 DCV
KAPWR B45 VBAT VBAT VBAT VBAT DCV
