Thermostatic Expansion Valve: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

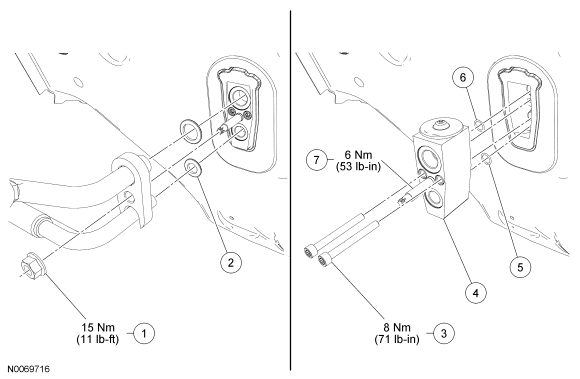

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Thermostatic expansion valve (TXV) fitting nut |
| 2 | 19B596 | TXV fitting gasket seal kit (2 pieces required from kit) |
| 3 | - | TXV bolt (2 required) (part of 19849) |
| 4 | 19849 | TXV |
| 5 | 19E889 | O-ring seal |
| 6 | 19E889 | O-ring seal |
| 7 | - | TXV fitting stud (part of 19849) |
