Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center finish panel. For additional information, refer to REMOVAL AND INSTALLATION .
  2. Remove the function selector switch knob.
  3. Press the tabs simultaneously and remove the function selector switch.

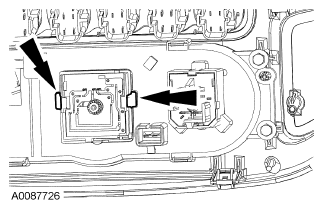

    Fig 1: Locating Function Selector Switch Tabs
    G04621650Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
