Safety Belt Retractor - Front: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Torx Bit, Safety Belt Bolt
501-010 (T77L-2100-A)

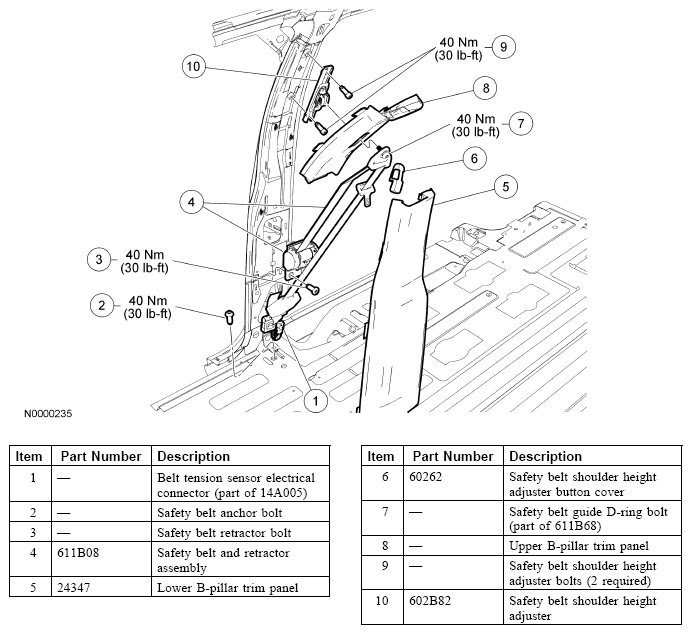

NOTE: RH side shown, LH side similar.

Fig 1: Safety Belt Retractor Replacement Components -- Front With Torque Specification's

Courtesy of FORD MOTOR CO.
