Power Steering Fluid Cooler: Notes

MATERIAL SPECIFICATION

Item Specification
MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX MERCON®

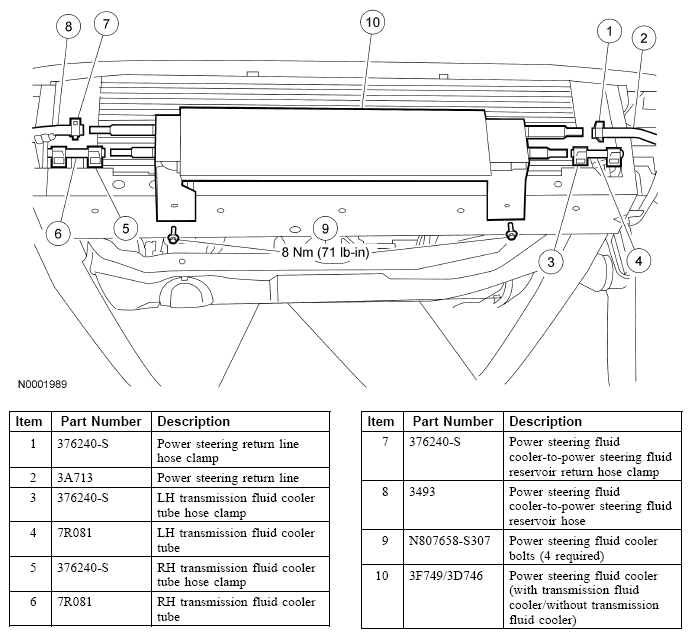

Fig 1: Identifying Power Steering Fluid Cooler Components
G04660155Courtesy of FORD MOTOR CO.
