Steering Gear: Notes

SPECIAL TOOL CHART

	Tie-Rod End Separator 211-105 (T85M-3395-A)
	Installer Set, Teflon® Seal 211-D027 (D90P-3517-A) or equivalent

MATERIAL SPECIFICATION

Item	Specification
MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX	MERCON®

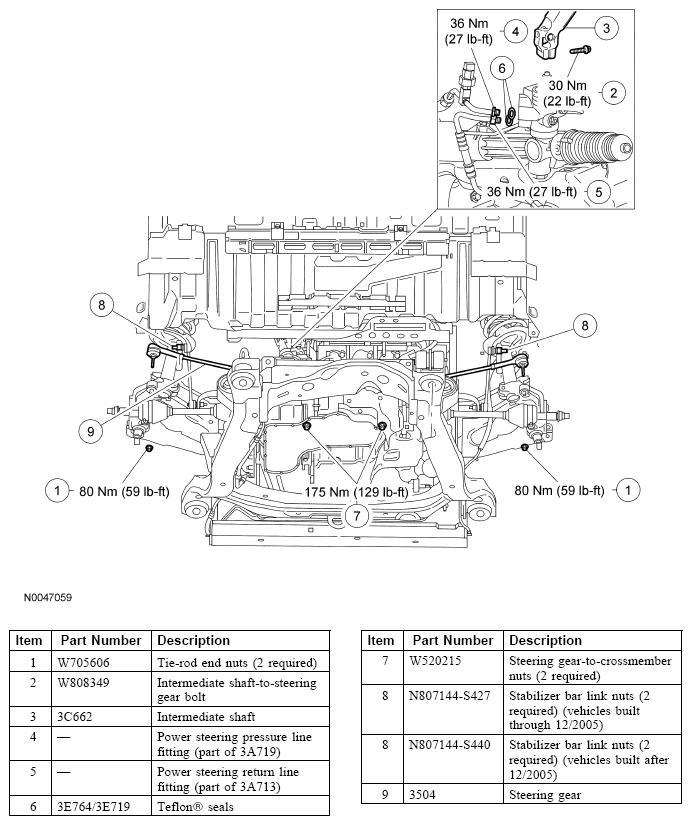

Fig 1: Identifying Steering Gear Remove/Install Components

Courtesy of FORD MOTOR CO.
