Toe Adjustment

Start the engine and center the steering wheel.
Turn the engine off and using a suitable holding device, lock the steering wheel in the straight ahead position.
Using alignment equipment and the manufacturer's instructions, measure the toe settings.
Remove the clamps.

Fig 1: Locating Clamps
Courtesy of FORD MOTOR CO.
Loosen the tie-rod jam nuts.

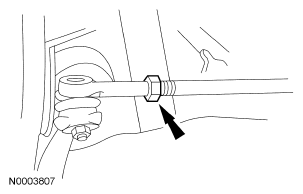

Fig 2: Locating Tie-Rod Jam Nuts
Courtesy of FORD MOTOR CO.

NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.

Adjust the toe setting.
Tighten the tie-rod jam nuts to 55 Nm (41 lb-ft).

Fig 3: Locating Tie-Rod Jam Nuts
Courtesy of FORD MOTOR CO.
Install the clamps.

Fig 4: Locating Clamps
Courtesy of FORD MOTOR CO.
Recheck the toe settings and adjust as necessary.
