Brake Shift Interlock Actuator: Notes

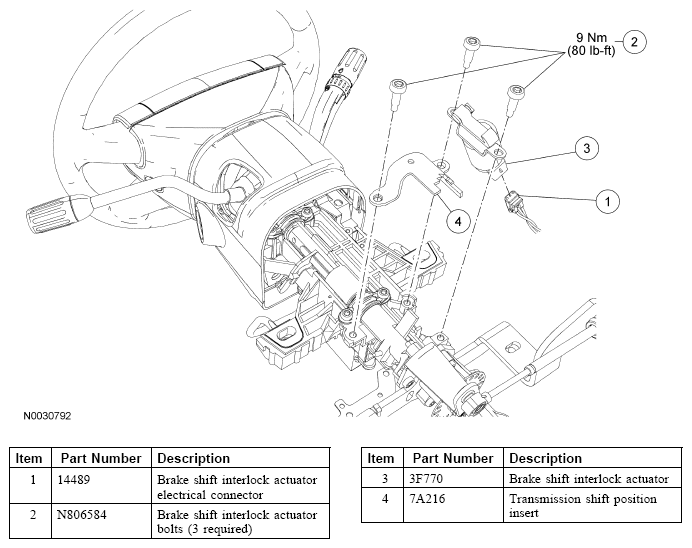

Fig 1: Brake Shift Interlock Actuator Replacement Components With Torque Specifications
G04661779Courtesy of FORD MOTOR CO.
