Selector Lever Cable and Bracket: Notes

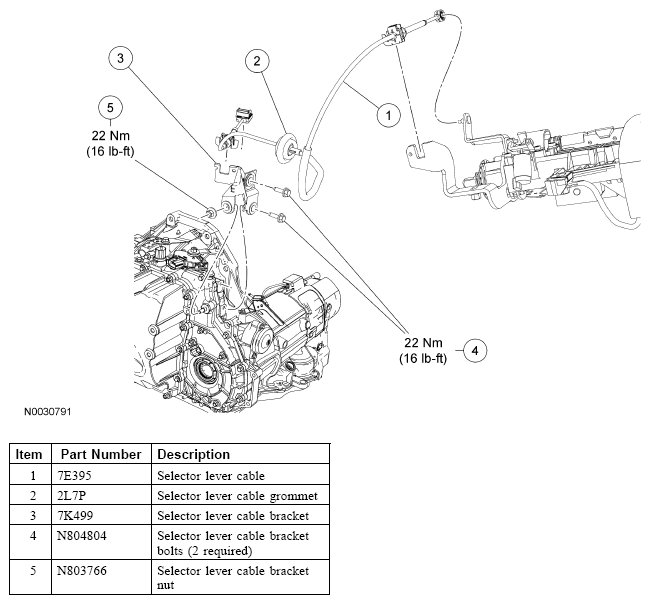

Fig 1: Selector Lever Cable And Bracket With Torque Specification
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
