Transmission Selector Lever: Notes

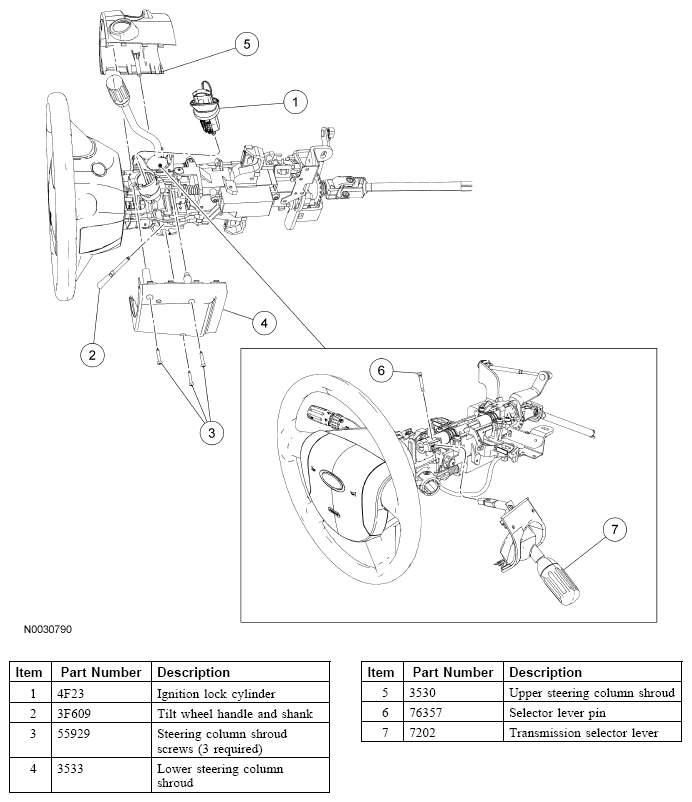

Fig 1: Identifying Transmission Selector Lever Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
