Forward Clutch Cylinder: Assembly

NOTE: The lip on the seal faces toward the bottom of the cylinder. Make sure the check ball moves freely.

Fig 1: Locating Inner Piston Seal

Courtesy of FORD MOTOR CO.

Install a new inner piston seal.

NOTE: Lightly coat all the seals with petroleum jelly during assembly.

Fig 2: Identifying Special Tool (307-175) Into Piston Assembly

Courtesy of FORD MOTOR CO.

Using the special tool, install the piston assembly.
Install the clutch return spring.

Fig 3: Installing Clutch Return Spring
Courtesy of FORD MOTOR CO.

CAUTION: Do not fully compress the return spring retainer.

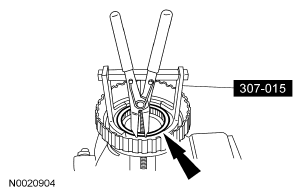

Fig 4: Identifying Special Tool (307-015) Into Snap Ring

Courtesy of FORD MOTOR CO.

Using the special tool, install the snap ring.
Install the forward clutch plates.
1. Install the clutch packs.
2. Install the pressure plate.
3. Install the retaining ring.

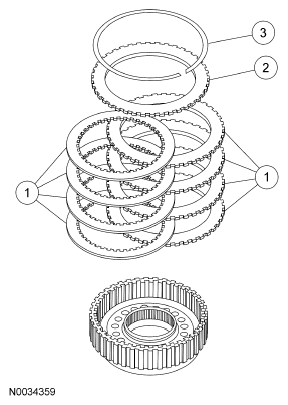

  Fig 5: Identifying Clutch Packs, Pressure Plate And Retaining Ring
  Courtesy of FORD MOTOR CO.
Using the special tool, measure the clearance between the retaining ring and the clutch cylinder lip.

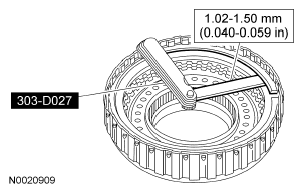

Fig 6: Measuring Clearance Between Retaining Ring And Clutch Cylinder Lip Using Special Tool (303-D027)
Courtesy of FORD MOTOR CO.

If the clearance is not within specification selective retaining rings are available. Check the clearance after installing the correct selective retaining ring.

SELECTIVE RETAINING RING SPECIFICATION

mm	Inch
1.37-1.47	0.054-0.058
1.65-1.75	0.065-0.069
1.93-2.03	0.076-0.080
2.21-2.31	0.087-0.091
2.49-2.59	0.098-0.102
2.77-2.87	0.109-0.113
