Forward Clutch Cylinder: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Feeler Gauge Set 303-D027 (D81L-4201-A) or equivalent
Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring 307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-175 (T86P-70548-A)

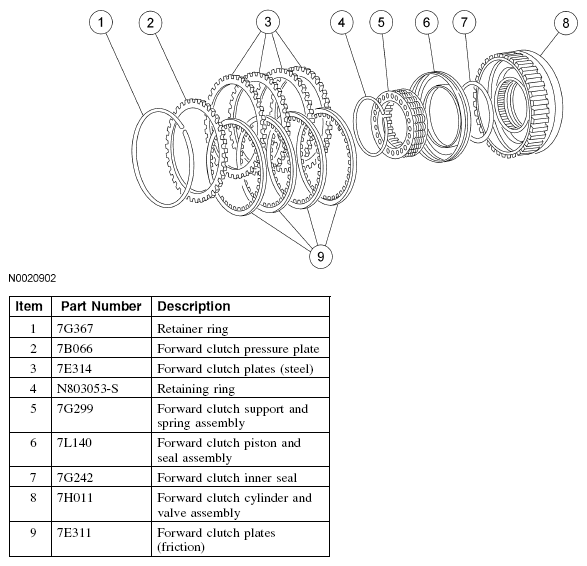

Fig 1: Identifying Forward Clutch Cylinder Components

Courtesy of FORD MOTOR CO.
