Intermediate Clutch Cylinder: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Dial Indicator Gauge with Holding Fixture 100-D002 (D78P-4201-B)
Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring 307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-319 (T94P-77001-LH)

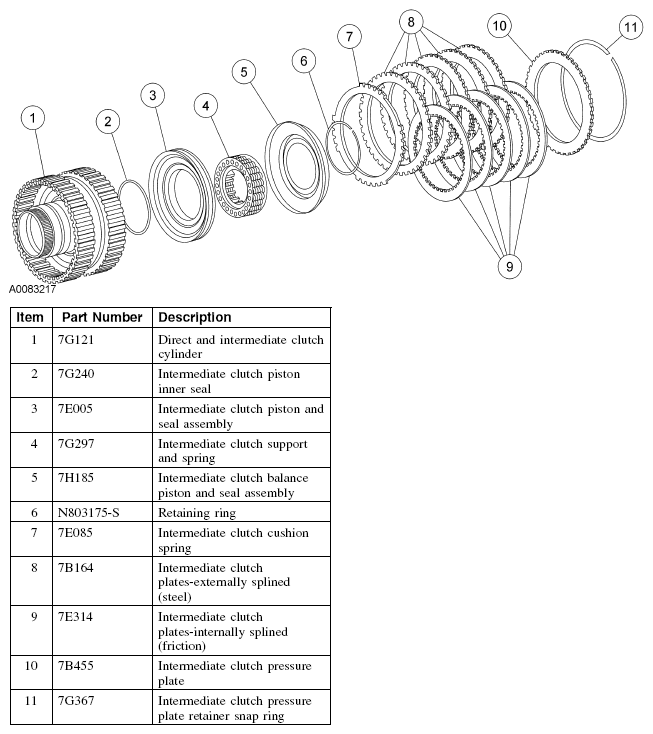

Fig 1: Identifying Intermediate Clutch Cylinder Components

Courtesy of FORD MOTOR CO.
