Low-Intermediate Clutch Cylinder: Notes

SPECIAL TOOL(S)

G04661498Courtesy of FORD MOTOR CO.
 Slide Hammer
100-001 (T50T-100-A)
G04661499Courtesy of FORD MOTOR CO.
 Actuator Pin 1/8-Inch Diameter
303-D010 (D80L-100-F) or equivalent
G04661500Courtesy of FORD MOTOR CO.
 Collet, 3/8-Inch - 7/16-Inchz
303-D015 (D80L-100-L)
G04661501Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring
307-015 (T65L-77515-A)
G04661502Courtesy of FORD MOTOR CO.
 Protector, Piston Seal
307-311 (T94P-77001-DH)
G04661503Courtesy of FORD MOTOR CO.
 Installer, Lube Tube Fluid Seal
307-315 (T94P-77001-GH)

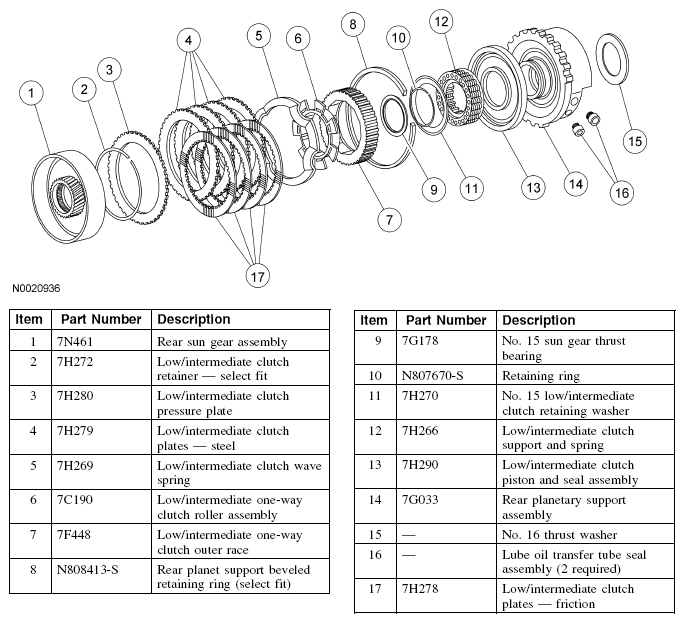

Fig 1: Exploded View Of Low-Intermediate Clutch Cylinder
