Neutral Drive Accumulator

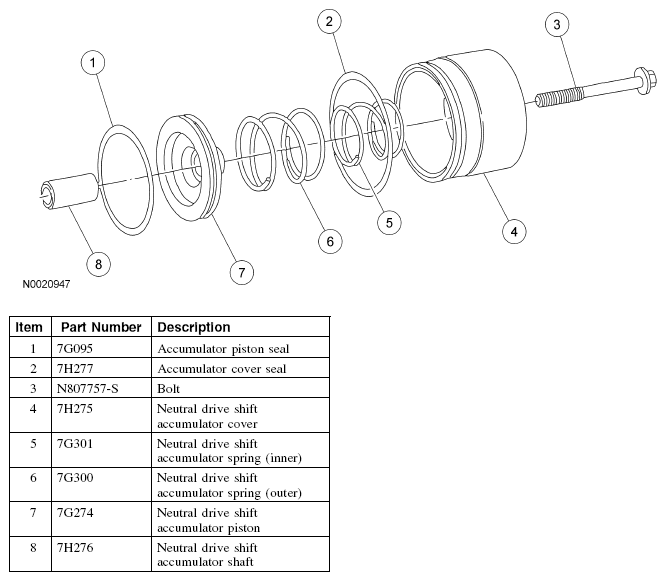

Fig 1: Identifying Neutral Drive Accumulator Components
G04661552Courtesy of FORD MOTOR CO.

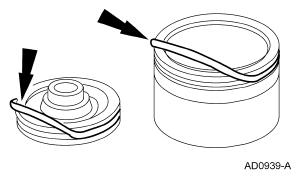

Fig 2: Identifying Neutral Drive Accumulator Piston Seals
G04661553Courtesy of FORD MOTOR CO.
  1. Lightly coat the seals with petroleum jelly prior to installation.
    • Remove and install a new neutral drive accumulator piston seal.
    • Remove and install a new neutral drive accumulator cover seal.
