Pump Shaft

NOTE: For an exploded view and part location, refer to ASSEMBLY  in this article.
    NOTE: Inspect the pump drive shaft in the area that the bearings ride. If worn, install a new shaft and main control.

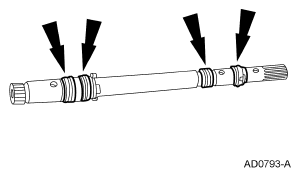

    Fig 1: Locating Teflon® Seals
    G04661322Courtesy of FORD MOTOR CO.
  1. Remove the Teflon® seals and inspect the shaft.
    2. NOTE: Make sure that the seals are installed correctly.
    Fig 2: Identifying Seal Ring Mating
    G04661323Courtesy of FORD MOTOR CO.
  2. Install 4 new seals on the pump shaft.
