Reverse Clutch: Notes

SPECIAL TOOL(S)

G04661472Courtesy of FORD MOTOR CO.
 Feeler Gauge Set
303-D027 (D81L-4201-A) or equivalent
G04661473Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring
307-015 (T65L-77515-A)
G04661474Courtesy of FORD MOTOR CO.
 Protector, Piston Seal
307-322 (T94P-77001-PH)

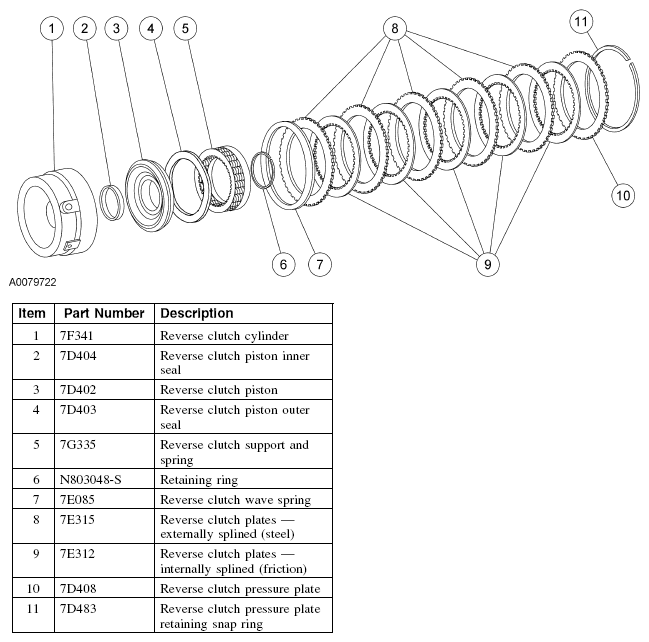

Fig 1: Identifying Reverse Clutch Components
G04661475Courtesy of FORD MOTOR CO.
