Transmission Range (TR) Sensor Adjustment

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Alignment Gauge TR Sensor
307-351 (T97L-70010-A)

With the vehicle in NEUTRAL position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Set the parking brake.
Loosen the clamps and remove the air cleaner tube.

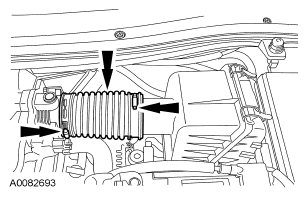

Fig 1: Locating Air Cleaner Tube Clamps
Courtesy of FORD MOTOR CO.
Remove the air cleaner assembly. For additional information, refer to FUEL CHARGING AND CONTROLS .

Fig 2: Locating Air Cleaner Assembly
Courtesy of FORD MOTOR CO.
Disconnect the digital transmission range (TR) sensor electrical connector.

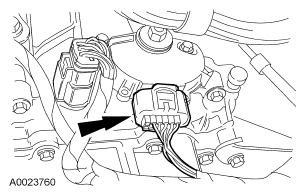

Fig 3: Locating Digital Transmission Range (TR) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the shift cable from the manual control lever.

Fig 4: Locating Shift Cable
Courtesy of FORD MOTOR CO.
Remove the manual control lever.

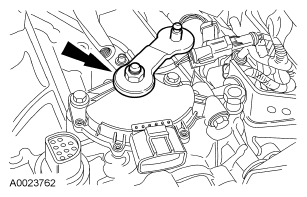

Fig 5: Locating Manual Control Lever
Courtesy of FORD MOTOR CO.
Loosen, but do not remove, the digital TR sensor bolts.

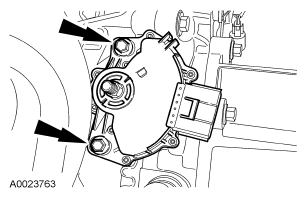

Fig 6: Locating Digital TR Sensor Bolts
Courtesy of FORD MOTOR CO.
Using the special tool, align the digital TR sensor and tighten the bolts.
- Tighten to 11 Nm (8 lb-ft).

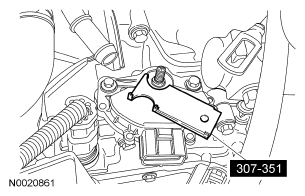

  Fig 7: Identifying Special Tool (303-351)
  Courtesy of FORD MOTOR CO.
Install the manual control lever and nut.
- Tighten to 13 Nm (10 lb-ft).

  Fig 8: Locating Manual Control Lever And Nut
  Courtesy of FORD MOTOR CO.
Connect the shift cable back onto the manual control lever.

Fig 9: Locating Shift Cable
Courtesy of FORD MOTOR CO.
Verify that the selector lever cable is correctly adjusted. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
Connect the digital TR range sensor electrical connector.

Fig 10: Locating Digital TR Range Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .

Fig 11: Locating Air Cleaner Assembly
Courtesy of FORD MOTOR CO.
Install the air cleaner tube and tighten the hose clamps.

Fig 12: Locating Air Cleaner Tube
Courtesy of FORD MOTOR CO.
Check for correct vehicle operation. Verify that the vehicle starts in the PARK and NEUTRAL positions ant the reverse lamps illuminate in REVERSE.
