Differential Seals: Installation

  1. Using the special tool, install the LH differential seal.

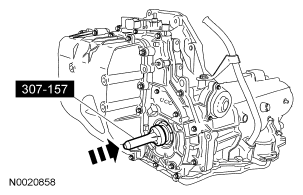

    Fig 1: Installing Special Tool (307-157) Into LH Differential Seal
    G04661132Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the RH seal.

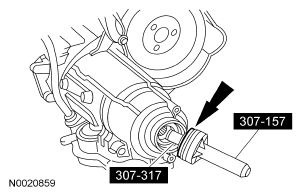

    Fig 2: Installing Special Tools (303-317, 307-157) Into RH Seal
    G04661133Courtesy of FORD MOTOR CO.
  3. Install the halfshafts into the vehicle. For additional information, refer to FRONT DRIVE HALFSHAFTS .
