Digital Transmission Range (TR) Sensor: Installation

Install the digital TR sensor and loosely install the bolts.

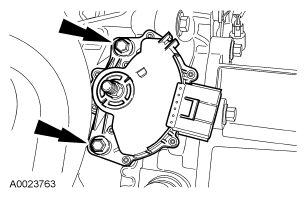

Fig 1: Identifying Digital TR Sensor Bolts
Courtesy of FORD MOTOR CO.
Using the special tool, align the digital TR sensor and tighten the bolts.
- Tighten to 11 Nm (8 lb-ft).

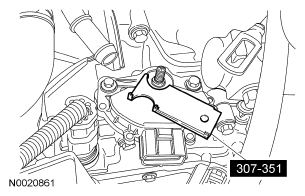

  Fig 2: Identifying Special Tool (307-351)
  Courtesy of FORD MOTOR CO.
Install the manual control lever and cable
1. Install the manual lever and nut.
  - Tighten to 13 Nm (10 lb-ft).

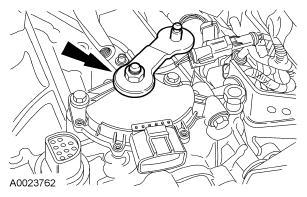

    Fig 3: Locating Manual Lever
    Courtesy of FORD MOTOR CO.
Connect the shift cable back onto the manual control lever.

Fig 4: Locating Shift Cable
Courtesy of FORD MOTOR CO.
Install the air filter assembly.

Fig 5: Locating Air Filter Assembly
Courtesy of FORD MOTOR CO.
Install the engine air cleaner lid.

Fig 6: Locating Engine Air Cleaner Lid
Courtesy of FORD MOTOR CO.
Reconnect the mass air flow (MAF) sensor and the breather tubes.

Fig 7: Locating Mass Air Flow (MAF) Sensor And Breather Tubes
Courtesy of FORD MOTOR CO.
Verify that the shift cable is correctly adjusted. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
