Digital Transmission Range (TR) Sensor: Notes

SPECIAL TOOL(S)

G04661134Courtesy of FORD MOTOR CO.
 Alignment Gauge TR Sensor
307-351 (T97L-70010-A)

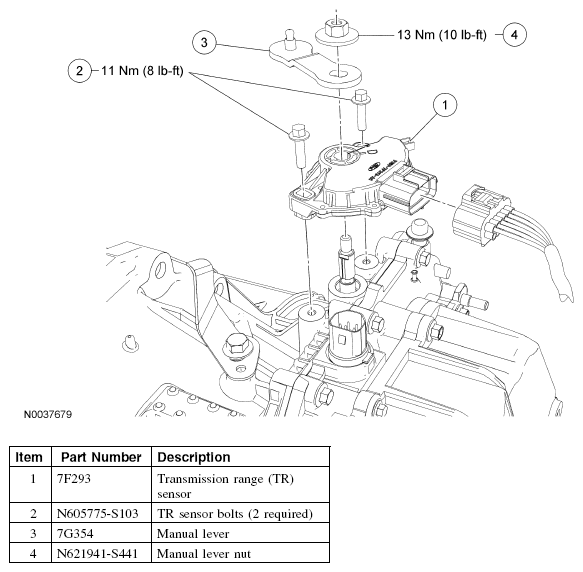

Fig 1: Digital Transmission Range (TR) Sensor Replacement Components With Torque Specifications
G04661135Courtesy of FORD MOTOR CO.
