Output Shaft Speed (OSS) Sensor: Installation

  1. Install the OSS sensor.

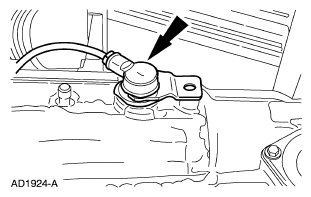

    Fig 1: Identifying OSS Sensor
    G04661117Courtesy of FORD MOTOR CO.
  2. Install the OSS cover.
    1. Install the cover.
    2. Install the bolt.
      • Tighten to 11 Nm (8 lb-ft).
    3. Install the connector.
      4. Fig 2: Identifying OSS Cover
      G04661118Courtesy of FORD MOTOR CO.
  3. Connect the OSS connector.

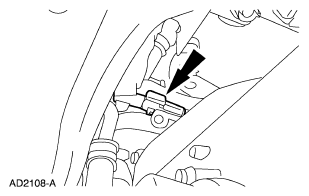

    Fig 3: Locating OSS Connector
    G04661119Courtesy of FORD MOTOR CO.
  4. Install the heat shield.
    Fig 4: Locating Heat Shield
    G04661120Courtesy of FORD MOTOR CO.
  5. Install the catalytic converter. For additional information, refer to EXHAUST SYSTEM .
