Output Shaft Speed (OSS) Sensor: Removal

  1. Remove the catalytic converter. For additional information, refer to EXHAUST SYSTEM .
  2. Remove the heat shield.
    Fig 1: Locating Heat Shield
    G04661113Courtesy of FORD MOTOR CO.
  3. Disconnect the output speed shaft speed (OSS) sensor connector.

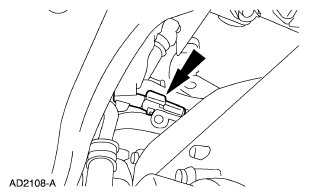

    Fig 2: Locating Output Speed Shaft Speed (OSS) Sensor Connector
    G04661114Courtesy of FORD MOTOR CO.
  4. Remove the OSS cover.
    1. Remove the connector.
    2. Remove the bolt.
    3. Remove the cover.
      Fig 3: Identifying OSS Cover And Connector
      G04661115Courtesy of FORD MOTOR CO.
  5. Remove the OSS sensor.

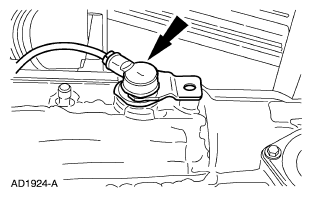

    Fig 4: Locating OSS Sensor
    G04661116Courtesy of FORD MOTOR CO.
