Power window switch, RH side front: Terminals

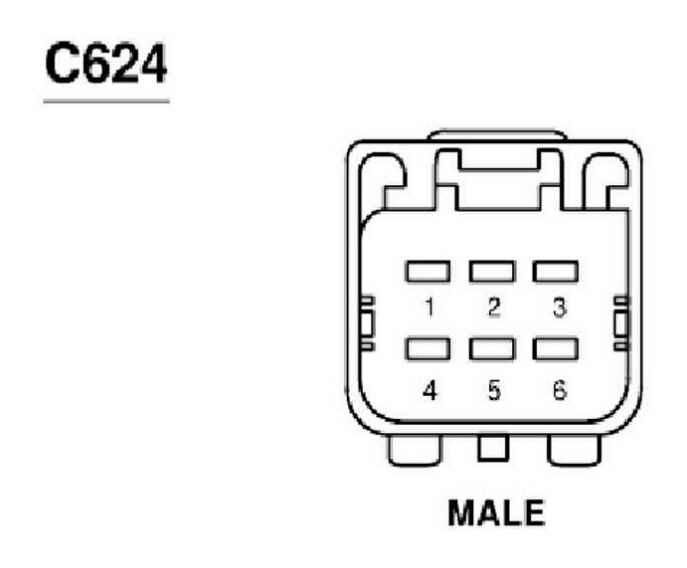

Fig 1: Identifying C624 Connector Terminals
G04597226Courtesy of FORD MOTOR CO.
