Steering Column: Notes

MATERIAL SPECIFICATION

Item Specification
Multi-Purpose Grease XG-4 and/or XL-5 ESB-M1C93-B
Penetrating and Lock Lubricant XL-1 (Canada CXC-51-A) -

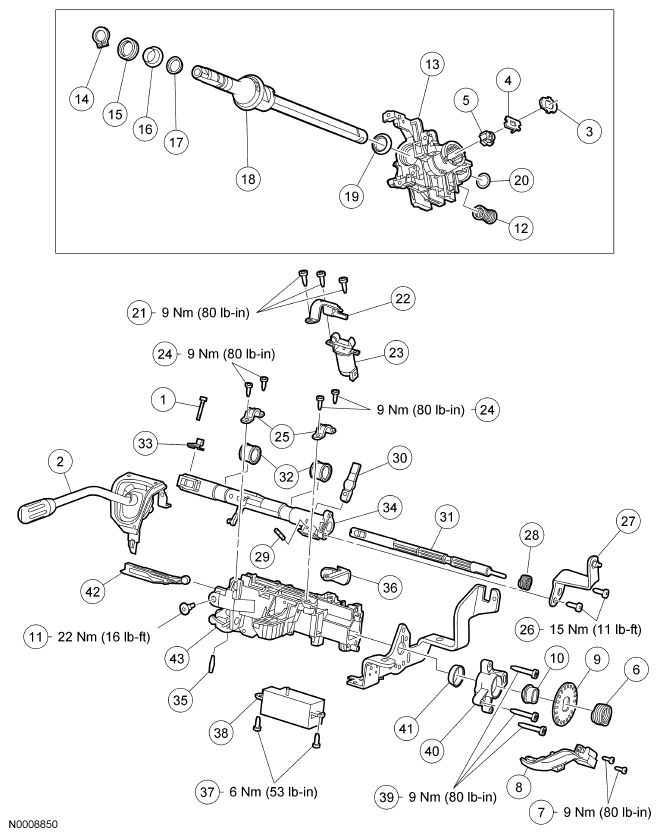

Fig 1: Exploded View Of Steering Column
G04660165Courtesy of FORD MOTOR CO.

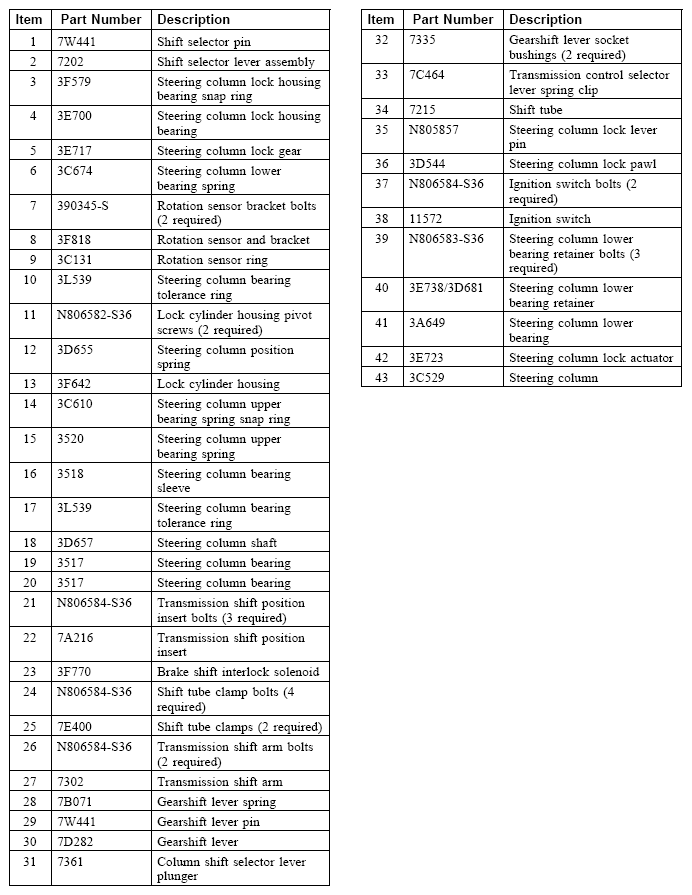

Fig 2: Steering Column Components Description
G04660166Courtesy of FORD MOTOR CO.
