Selector Lever Cable Adjustment

All vehicles

CVT transaxle

Disconnect the selector lever cable end.

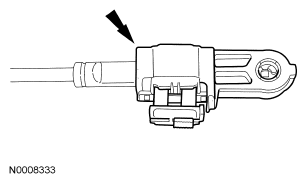

Fig 1: Locating Shift Cable End

Courtesy of FORD MOTOR CO.

Place the manual control lever in the DRIVE position.

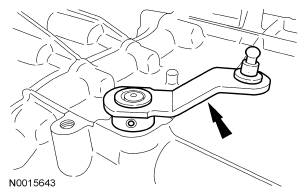

Fig 2: Placing Manual Control Lever In DRIVE Position

Courtesy of FORD MOTOR CO.

Place the gear shift lever in the DRIVE position.

Fig 3: Placing Gear Shift Lever In DRIVE Position

Courtesy of FORD MOTOR CO.

Slide the release tab toward the back of the cable end to unlock the adjuster.

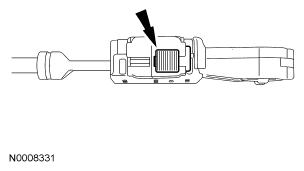

Fig 4: Sliding Release Tab Toward Back Of Cable End To Unlock Adjuster

Courtesy of FORD MOTOR CO.

Pull out on the adjuster locking tab.

Fig 5: Pulling Out On Adjuster Locking Tab

Courtesy of FORD MOTOR CO.

Slide the cable end either backward or forward to align it with the manual control lever.

Fig 6: Sliding Cable End To Align It With Manual Control Lever

Courtesy of FORD MOTOR CO.

With the adjuster locking tab released connect the selector lever cable end to the manual lever.

Fig 7: Locating Shift Cable End

Courtesy of FORD MOTOR CO.

Push the adjuster locking tab in to lock it in place.

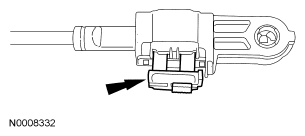

Fig 8: Pushing Adjuster Locking Tab To Lock In Place

Courtesy of FORD MOTOR CO.

Slide the release tab back to lock the adjuster.

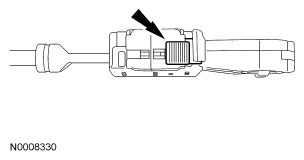

Fig 9: Sliding Release Tab Back To Lock Adjuster

Courtesy of FORD MOTOR CO.

6-speed transaxle

Disconnect the selector lever cable end.

Fig 10: Locating Shift Cable End

Courtesy of FORD MOTOR CO.

Place the manual lever in the DRIVE position.

Fig 11: Placing Manual Lever In DRIVE Position

Courtesy of FORD MOTOR CO.

Place the gearshift lever in the DRIVE position.

Fig 12: Placing Gearshift Lever In DRIVE Position

Courtesy of FORD MOTOR CO.

Slide the release tab toward the back of the selector lever cable end to unlock the adjuster.

Fig 13: Sliding Release Tab Toward Back Of Selector Lever Cable End To Unlock Adjuster

Courtesy of FORD MOTOR CO.

Pull out on the adjuster locking tab.

Fig 14: Pulling Out On Adjuster Locking Tab

Courtesy of FORD MOTOR CO.

Slide the selector lever cable end either backward or forward to align it with the manual control lever.

Fig 15: Sliding Selector Lever Cable End To Align With Manual Control Lever

Courtesy of FORD MOTOR CO.

With the adjuster locking tab released, connect the selector lever cable end to the manual lever.

Fig 16: Locating Shift Cable End

Courtesy of FORD MOTOR CO.

Push the adjuster locking tab in to lock it in place.

Fig 17: Pushing Adjuster Locking Tab In To Lock In Place

Courtesy of FORD MOTOR CO.

Slide the release tab back to lock the adjuster.

Fig 18: Sliding Release Tab To Lock Adjuster

Courtesy of FORD MOTOR CO.

All vehicles
