Smart Junction Box (SJB)

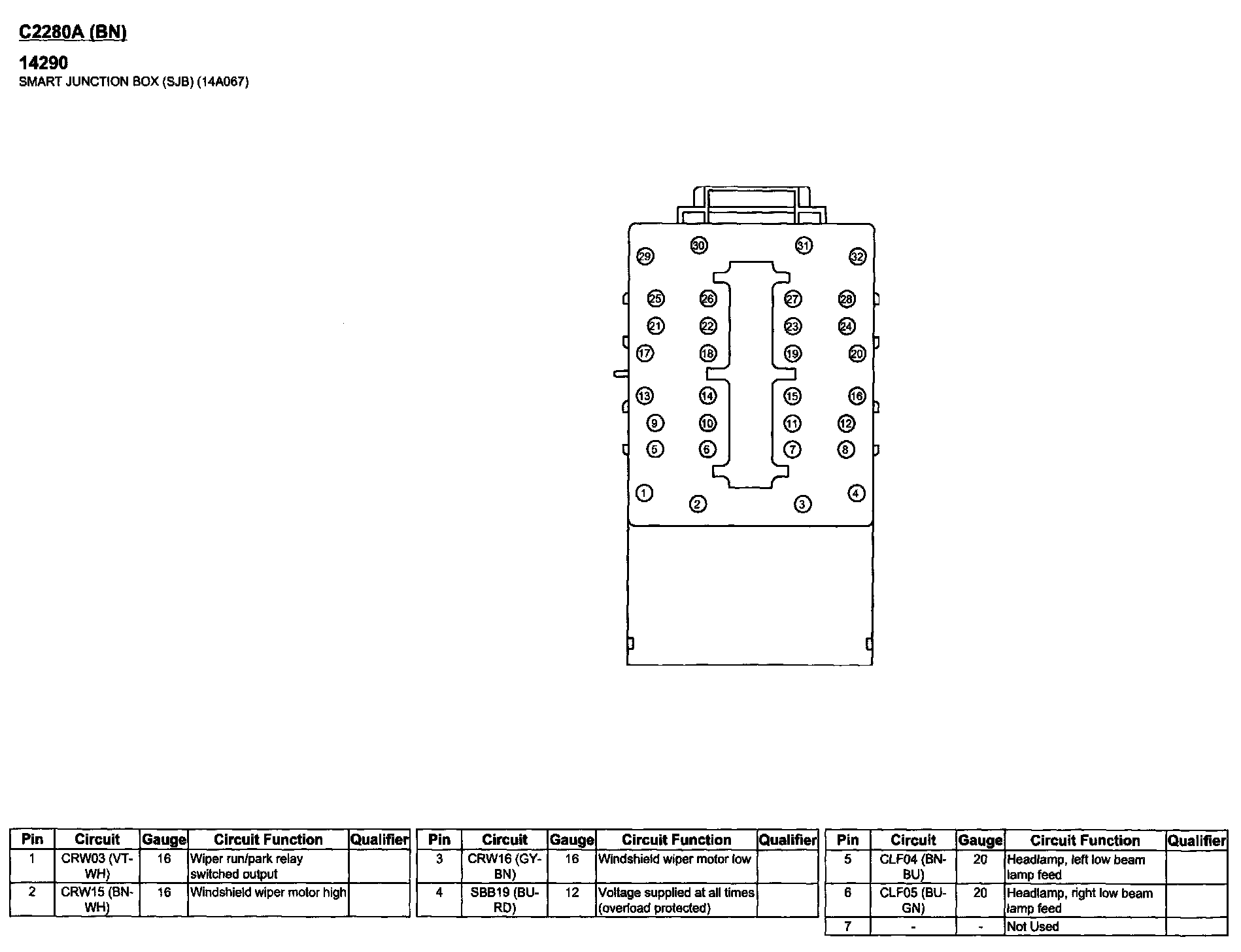

C2280A (Part 1):

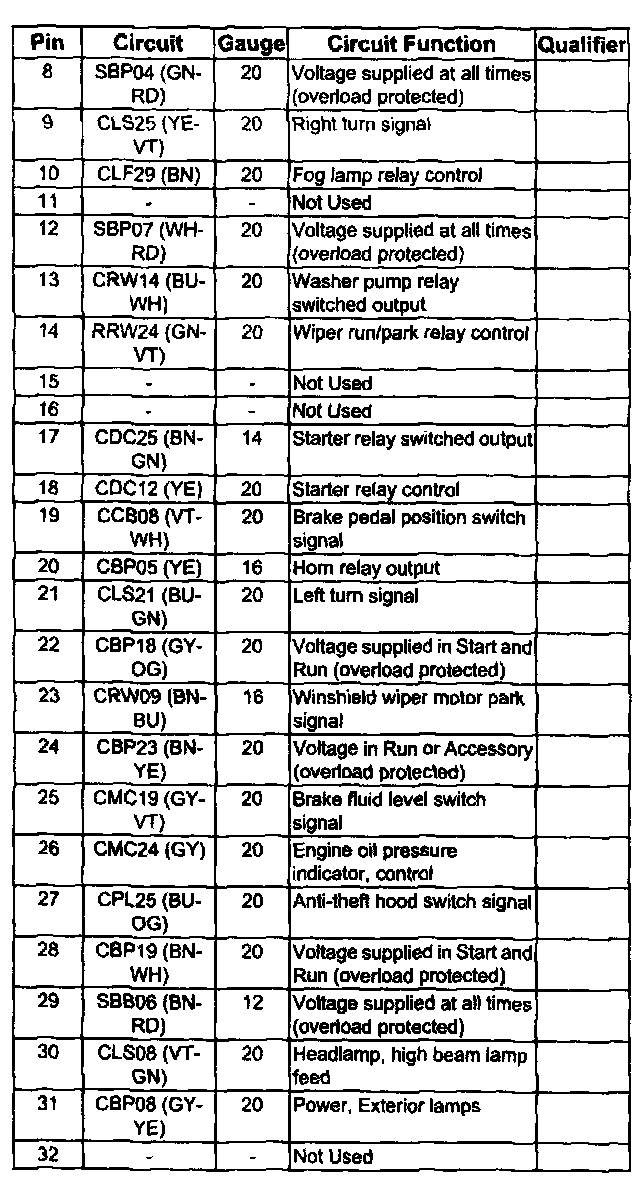

C2280A (Part 2):

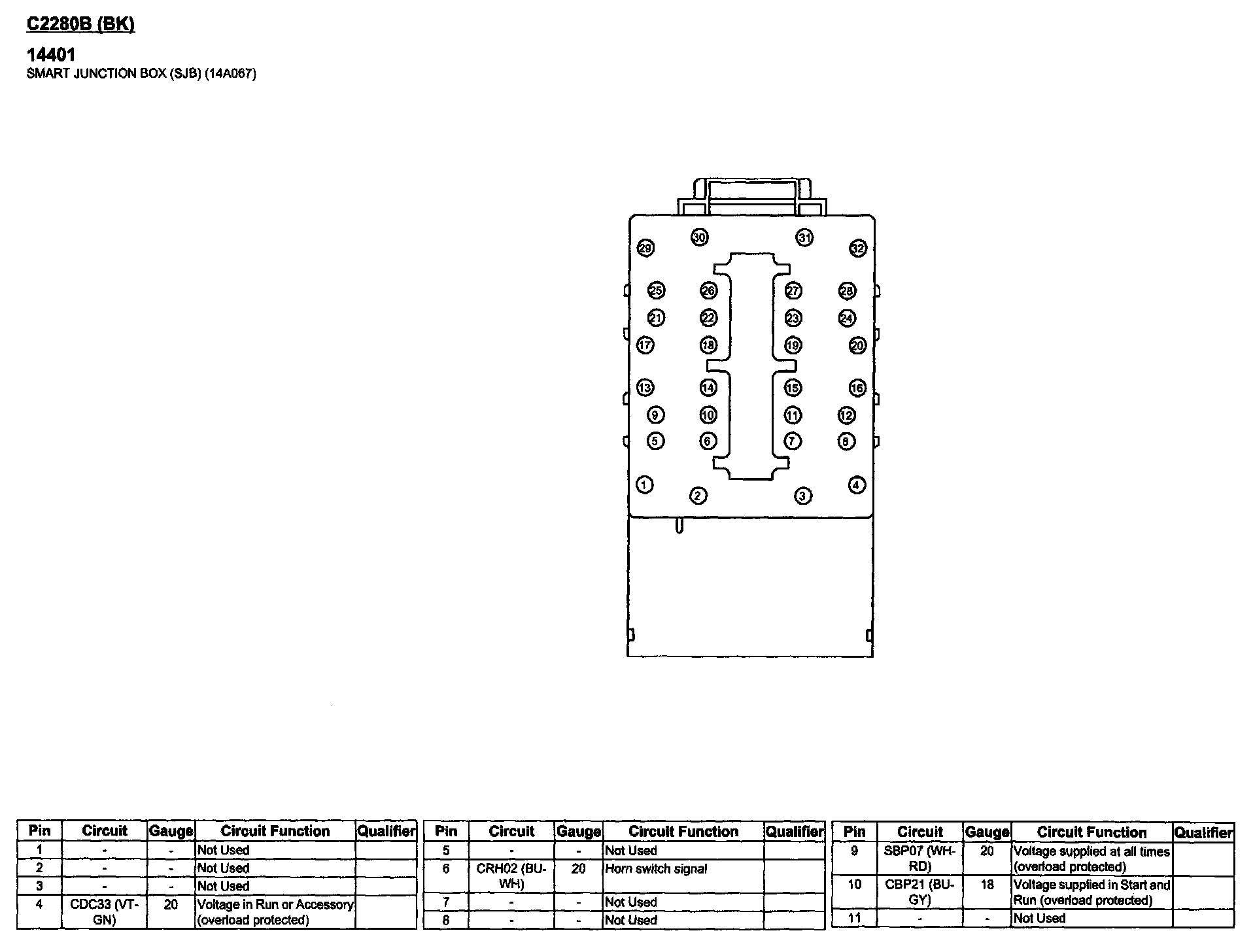

C2280B (Part 1):

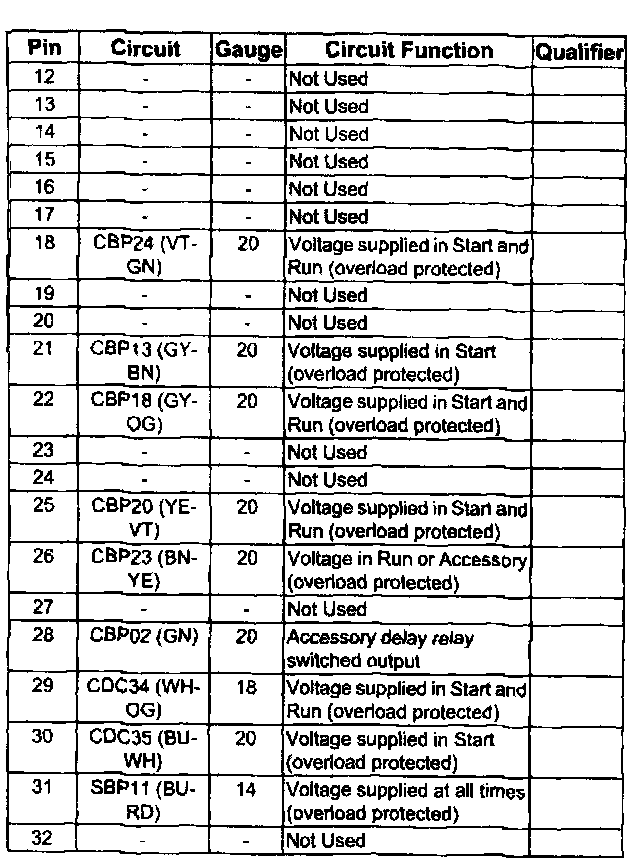

C2280B (Part 2):

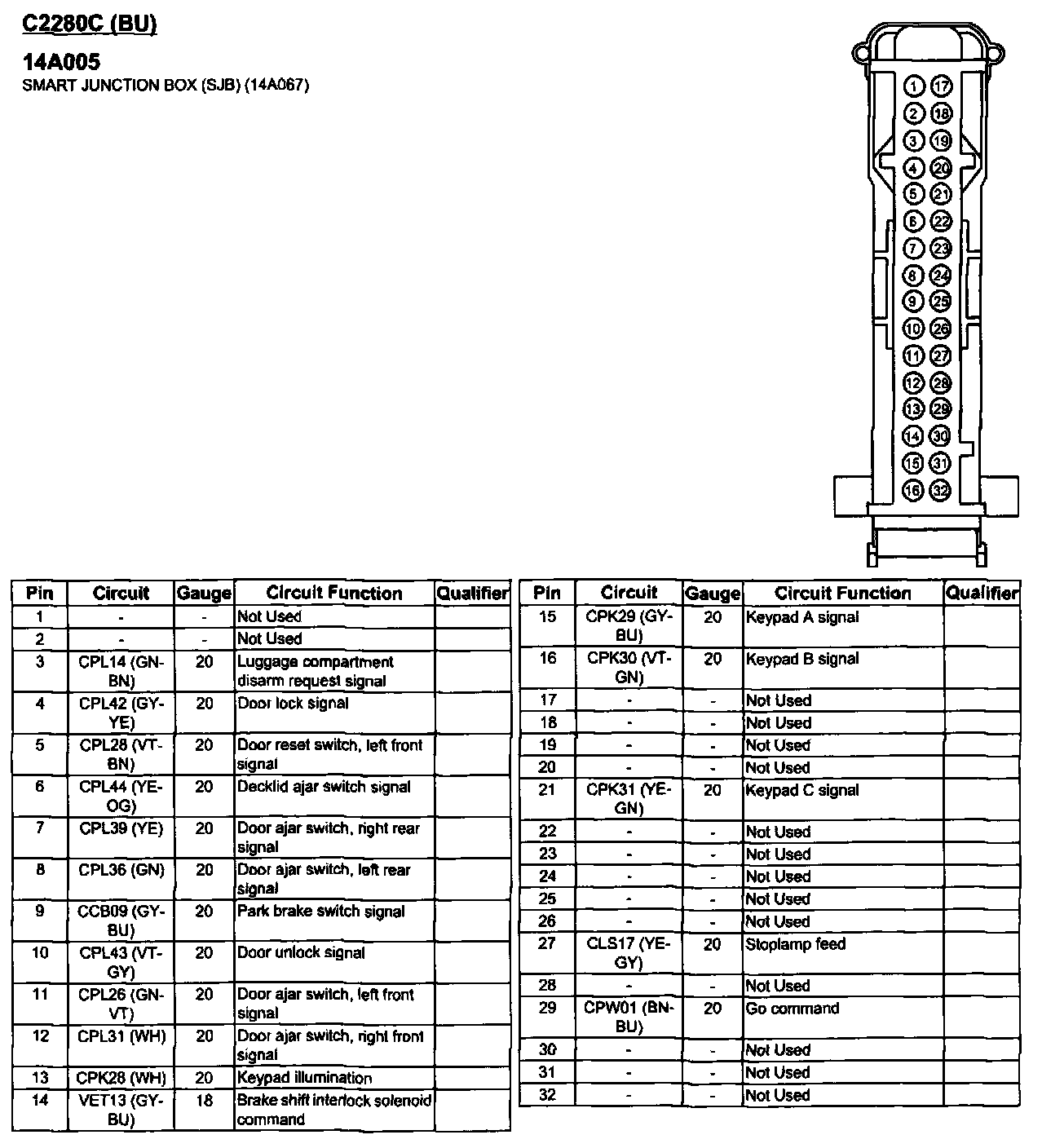

C2280C:

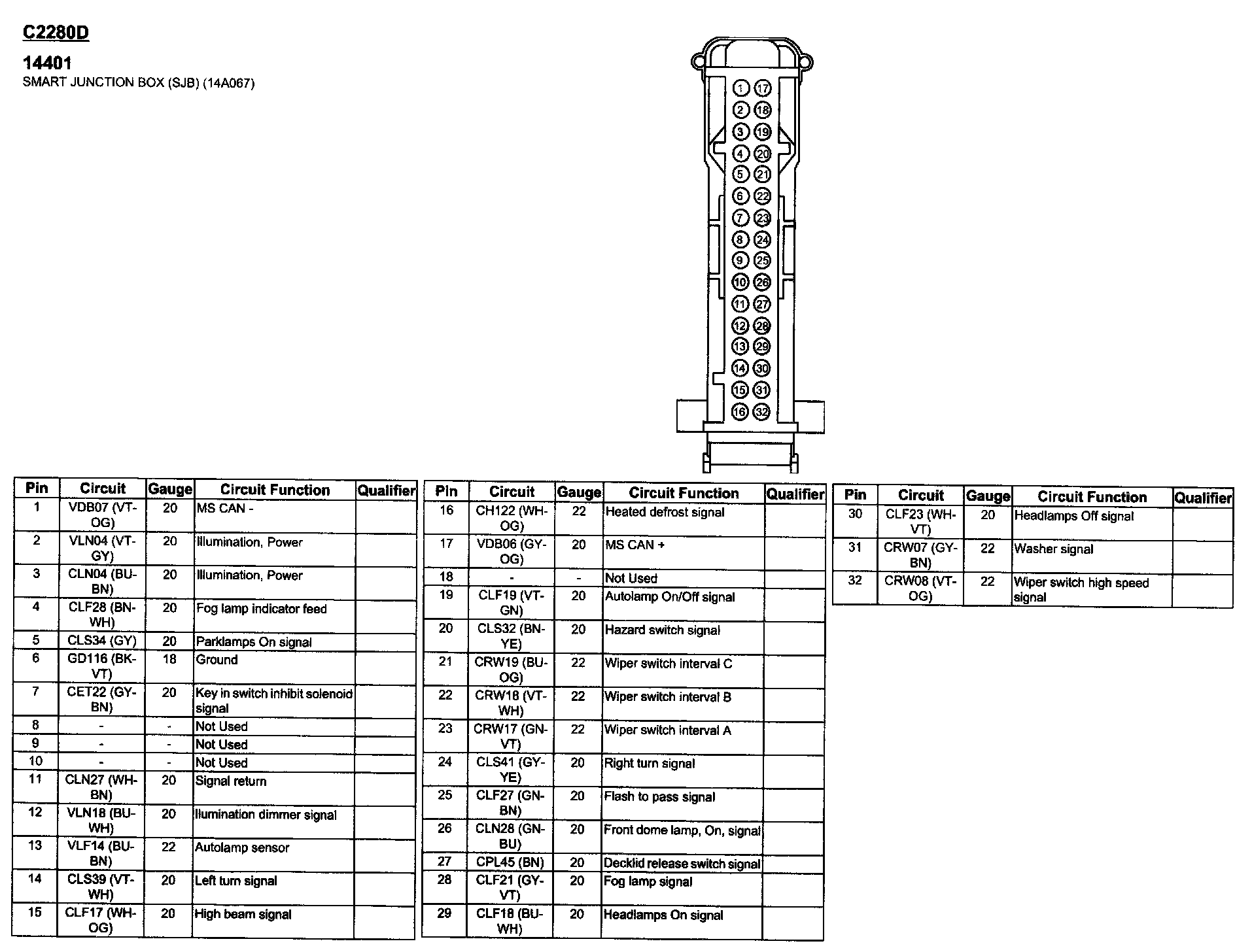

C2280D:

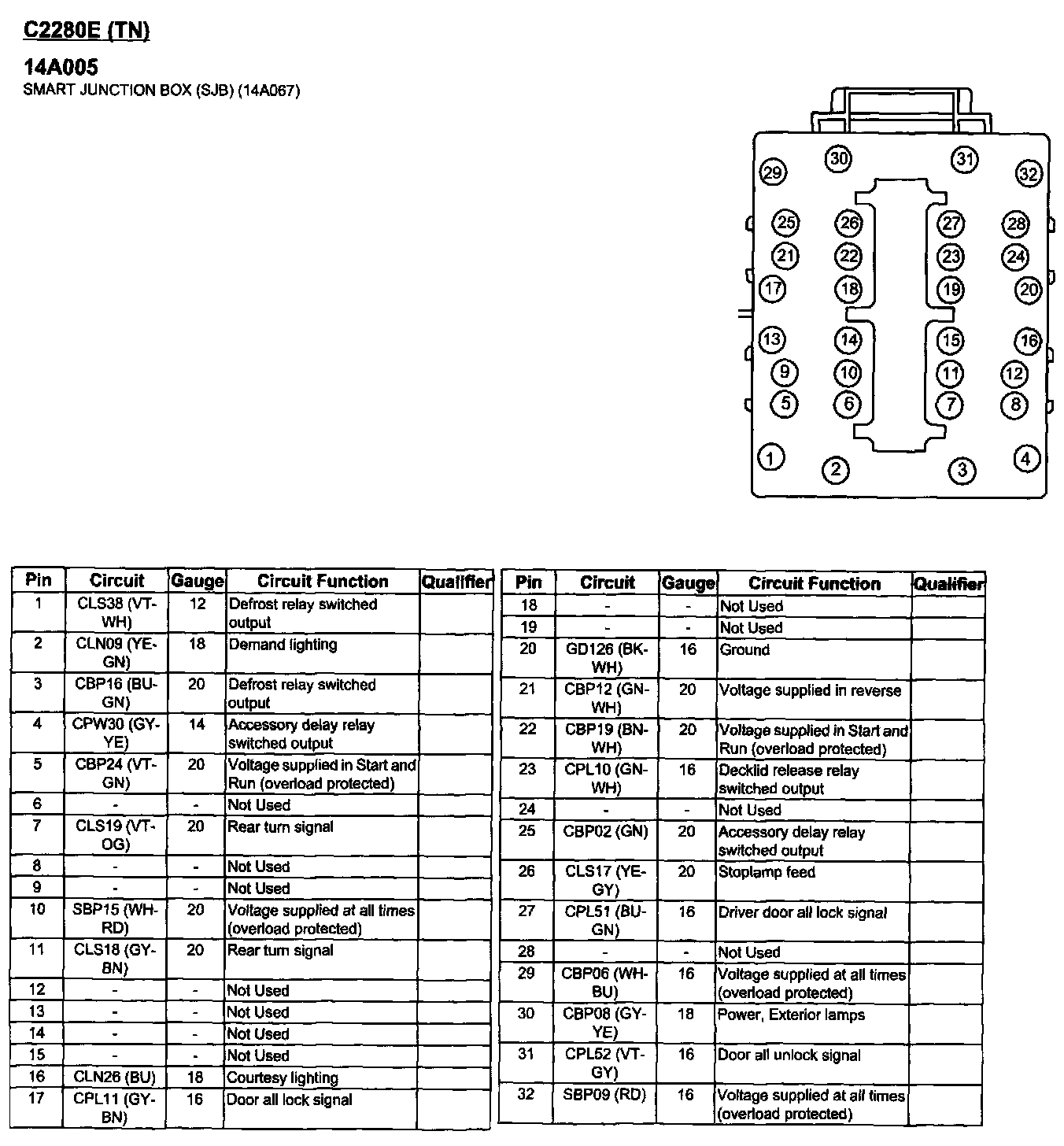

C2280E:

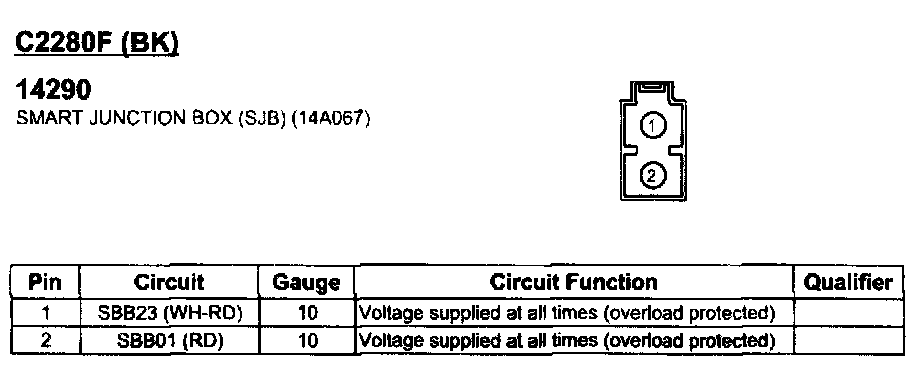

C2280F:
