Exhaust System
Exhaust System
- Exploded View

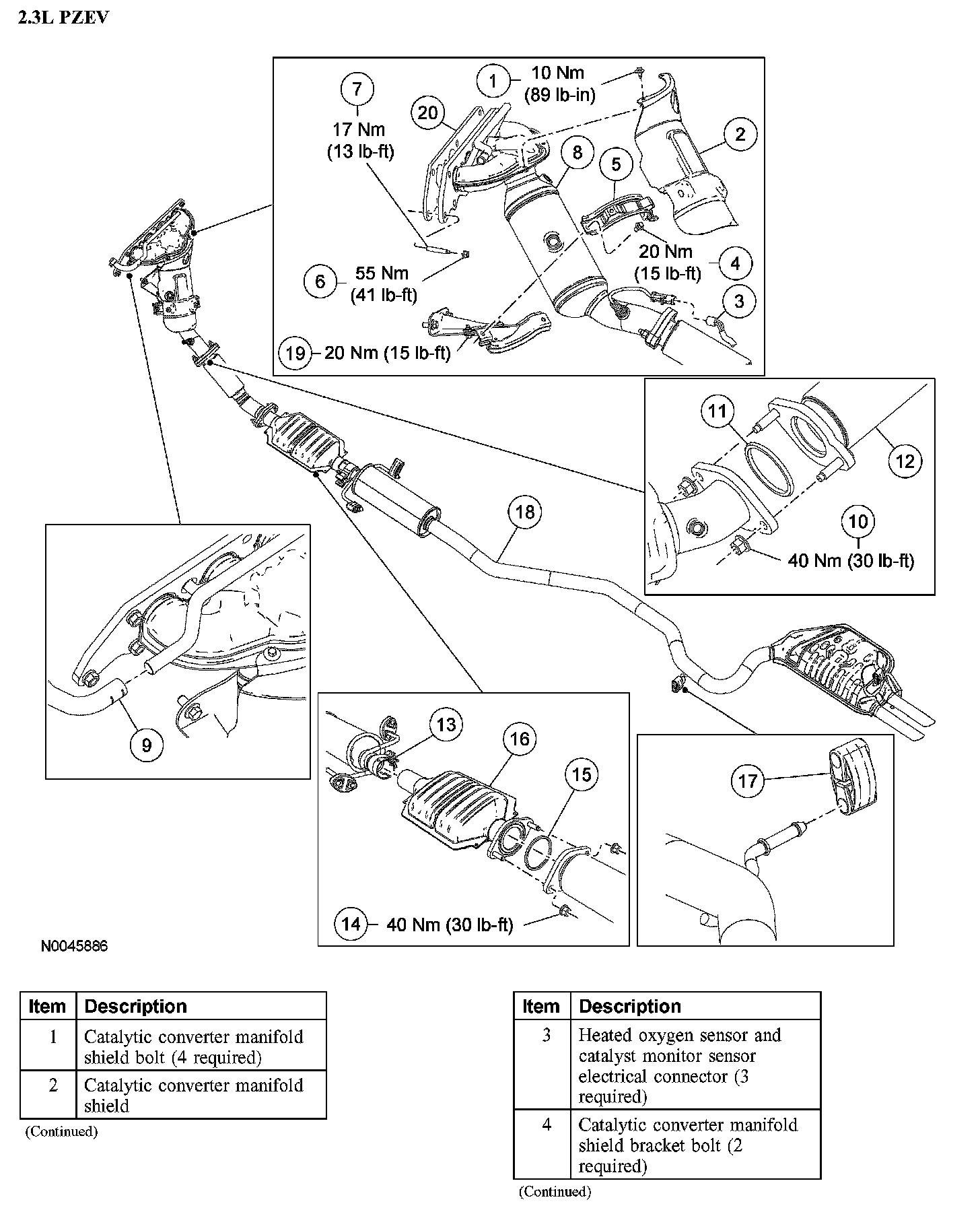

2.3L PZEV:

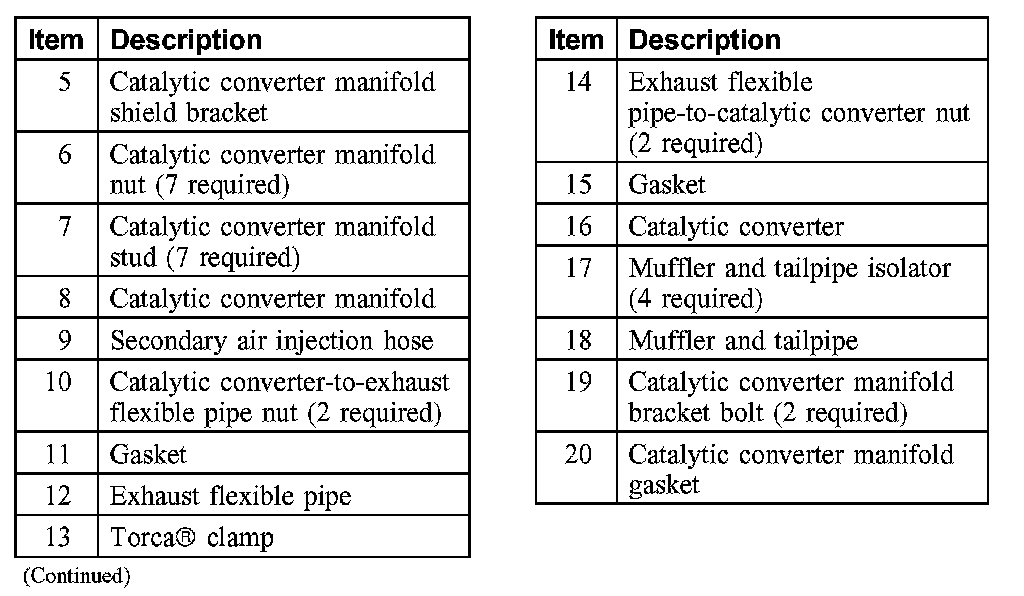

2.3L PZEV:

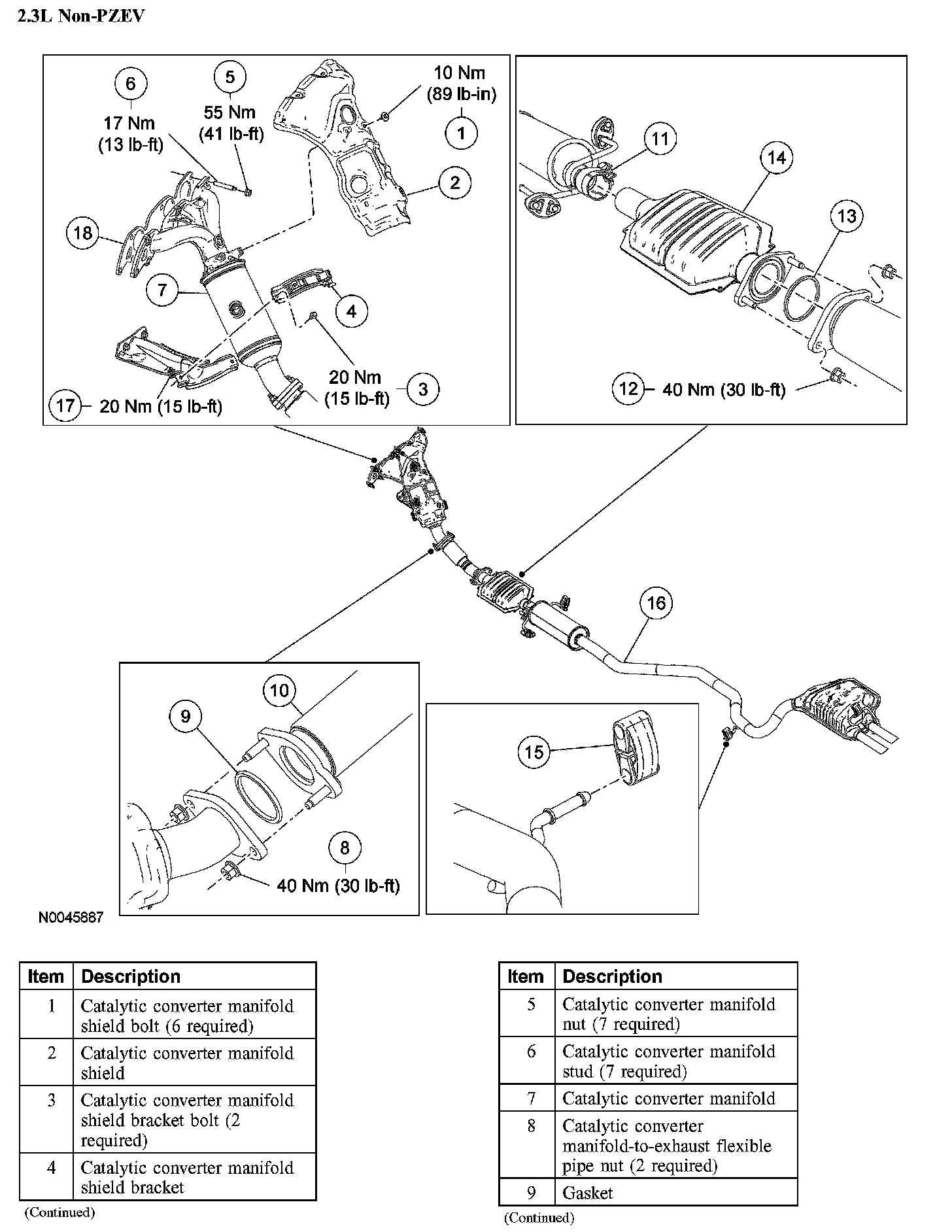

2.3L Non-PZEV:

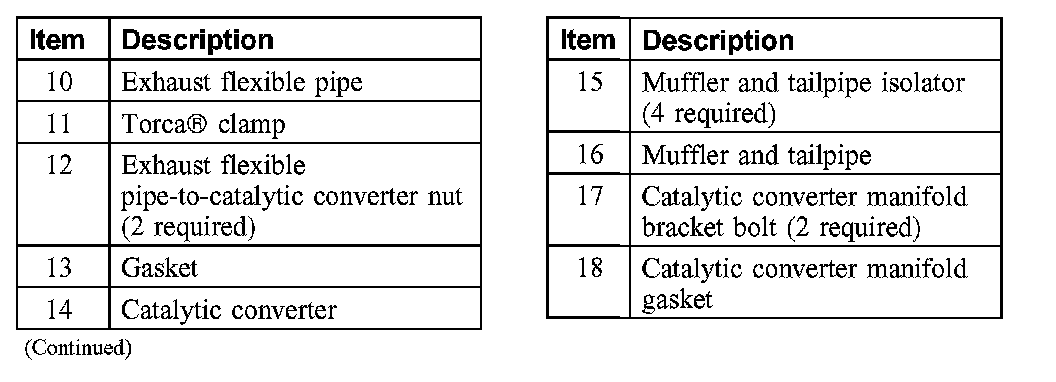

2.3L Non-PZEV:

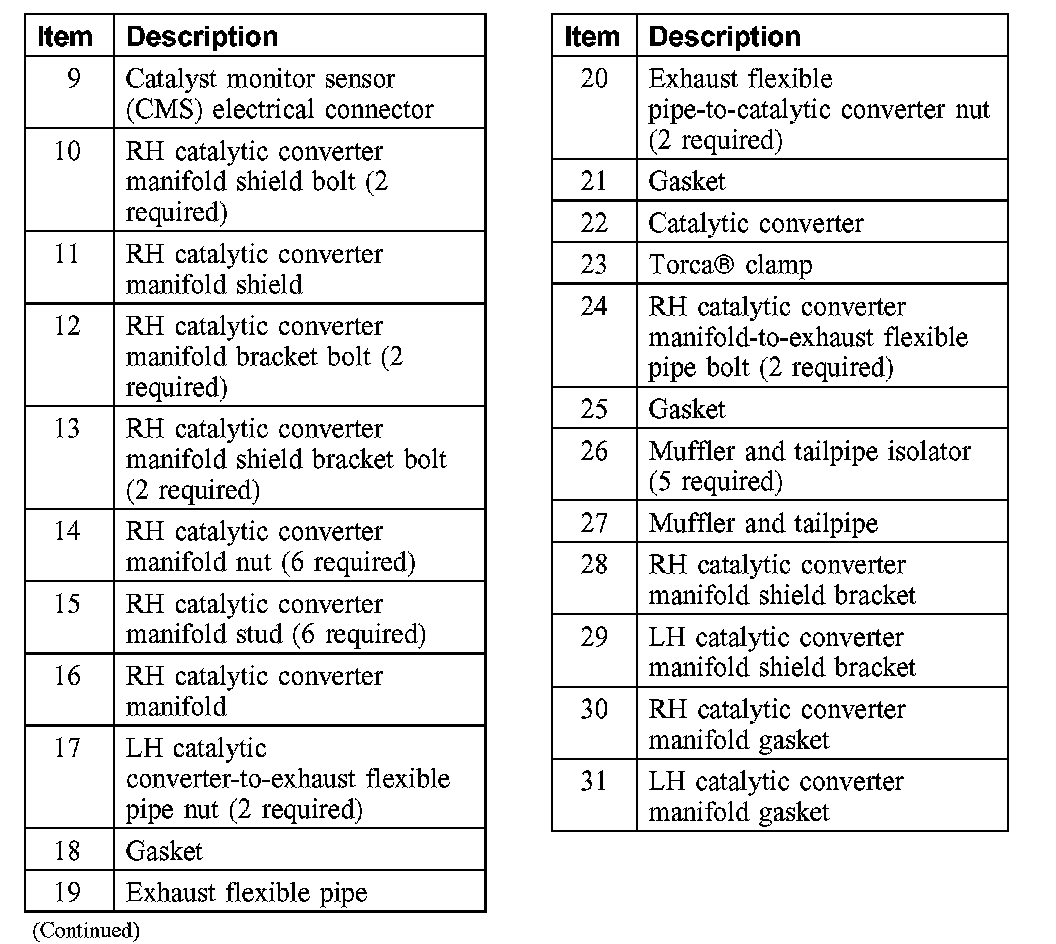

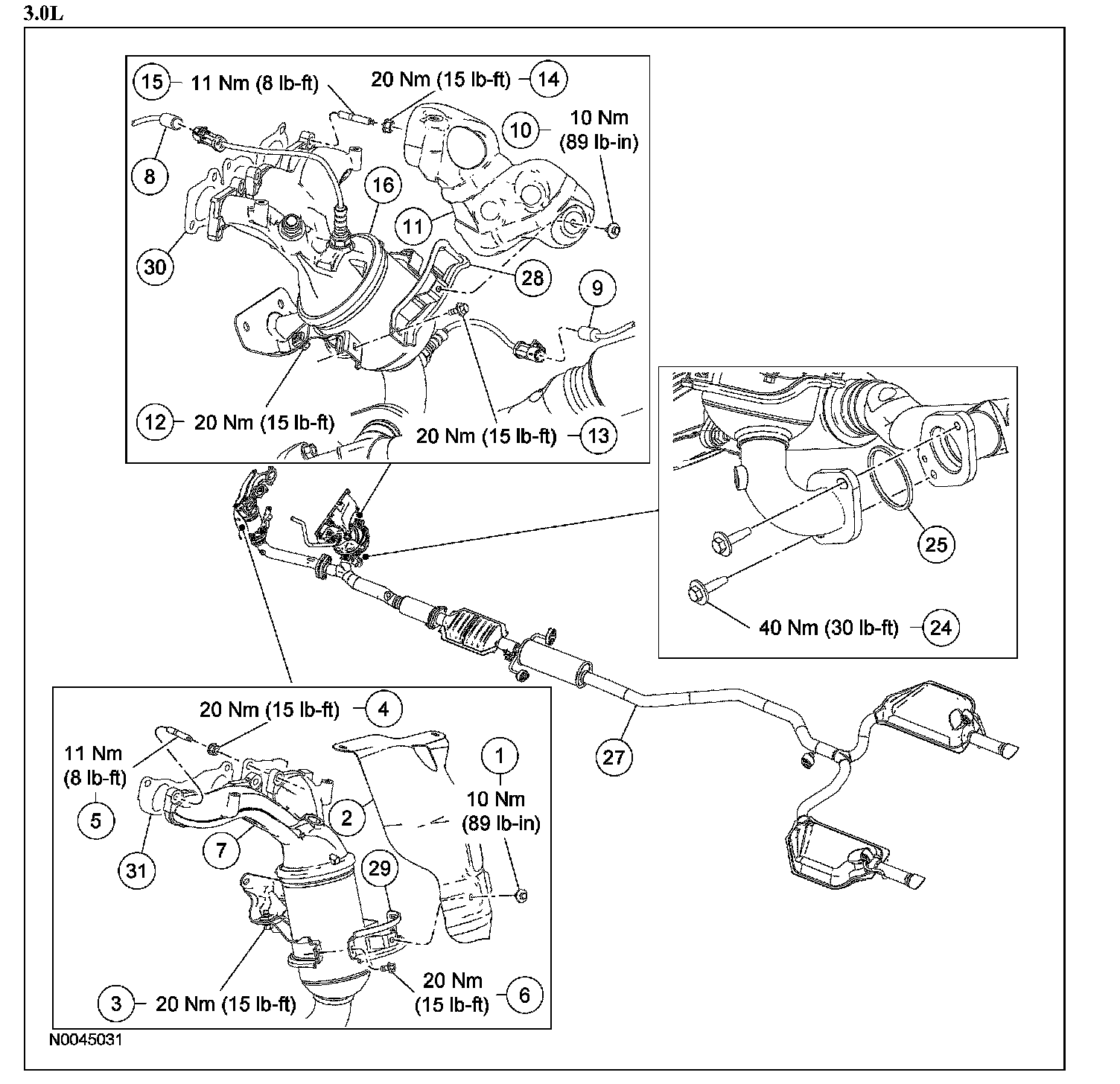

3.0L:

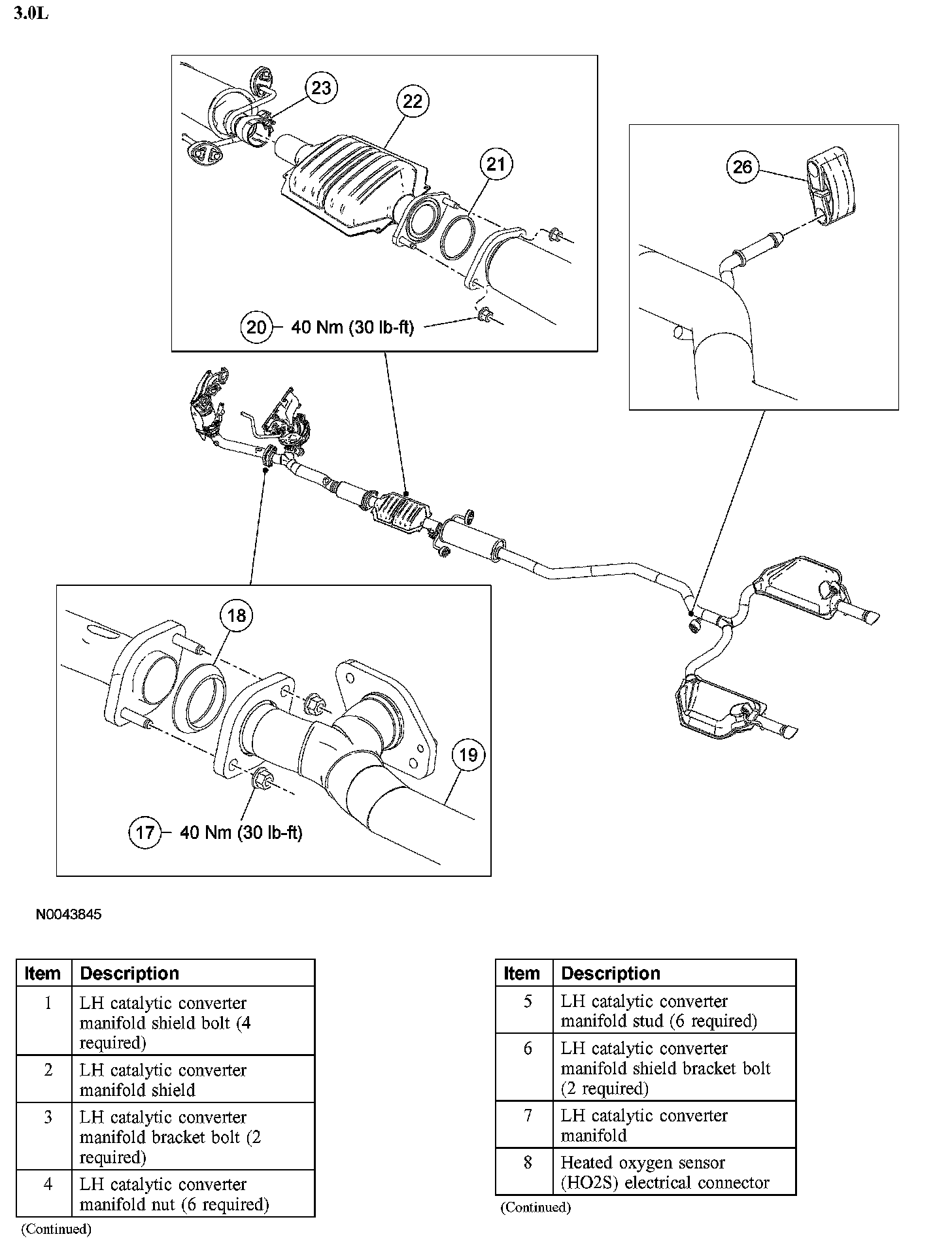

3.0L:
3.0L:
