Test A: The Powertrain Control Module (PCM) Does Not Respond To The Diagnostic Tool

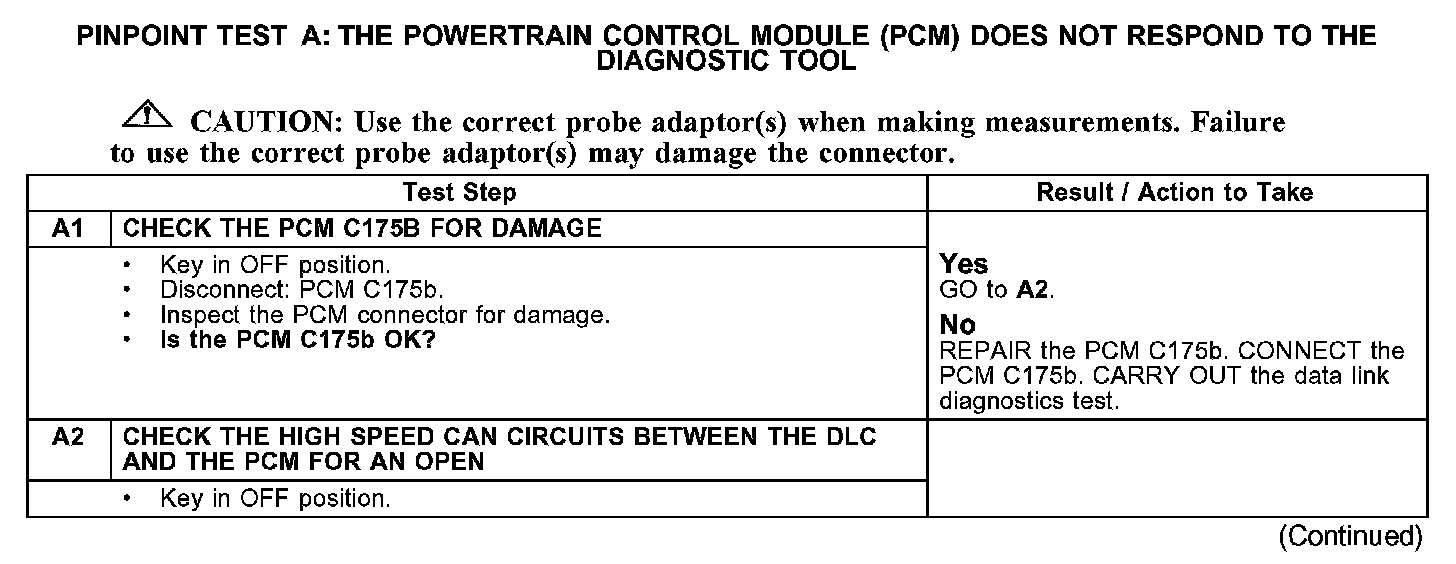

PINPOINT TEST A: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOLA1-A2:
A2-A3:
Normal Operation
The PCM communicates with the diagnostic tool through the high speed controller area network (CAN), circuits VDB04 (WH/BU) and VDB05 (WH).

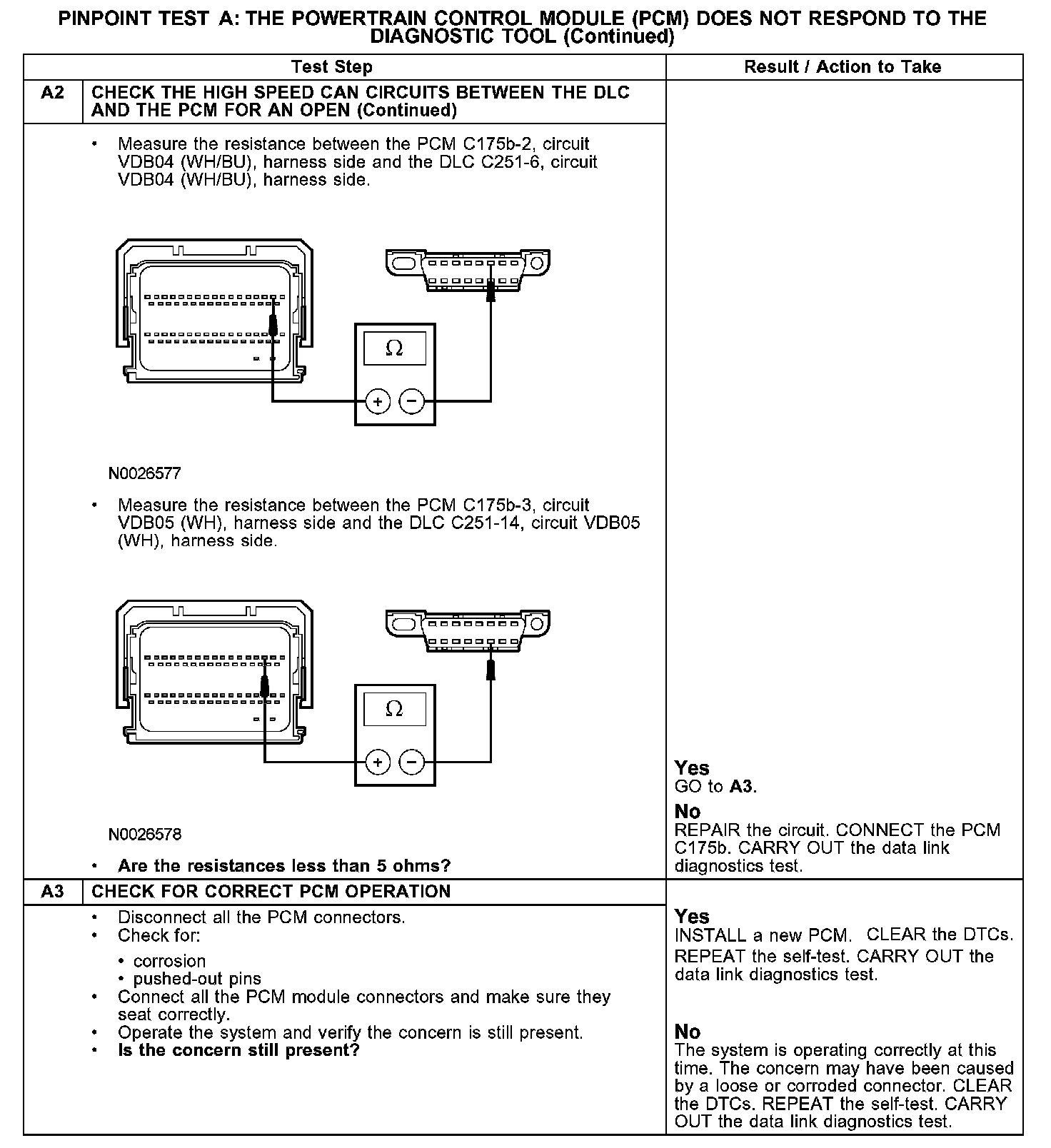

Check the high speed CAN circuits VDB04 (WH/BU) and VDB05 (WH) between the PCM C175b and the data link connector (DLC) C251. The total resistance values must not be more than 5 ohms. If the resistance is more than 5 ohms there is an open in one of the high speed CAN circuits, damage to the DLC C251, damage to the PCM C175b, or a problem in an in-line connector.
Possible Causes
- high speed CAN data plus circuit VDB04 (WH/BU) open
- high speed CAN data minus circuit VDB05 (WH) open
- PCM C175b
- PCM
