Tests HY: Generator/Regulator System
PINPOINT TEST HY: GENERATOR/REGULATOR SYSTEM
This pinpoint test is intended to diagnose the following:
^
generator/regulator (10346)
^
powertrain control module ( PCM) (12A650)

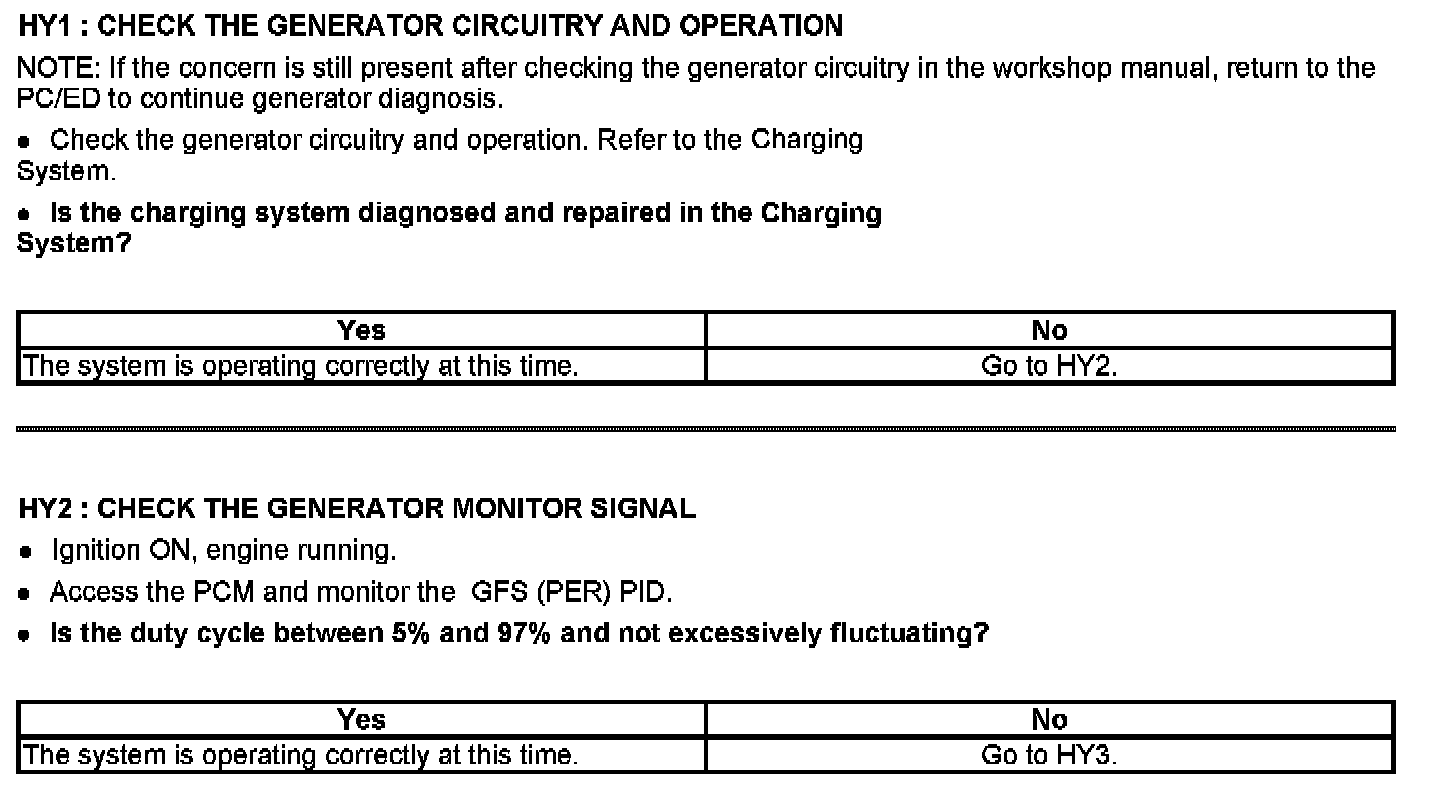

HY1 - HY2:

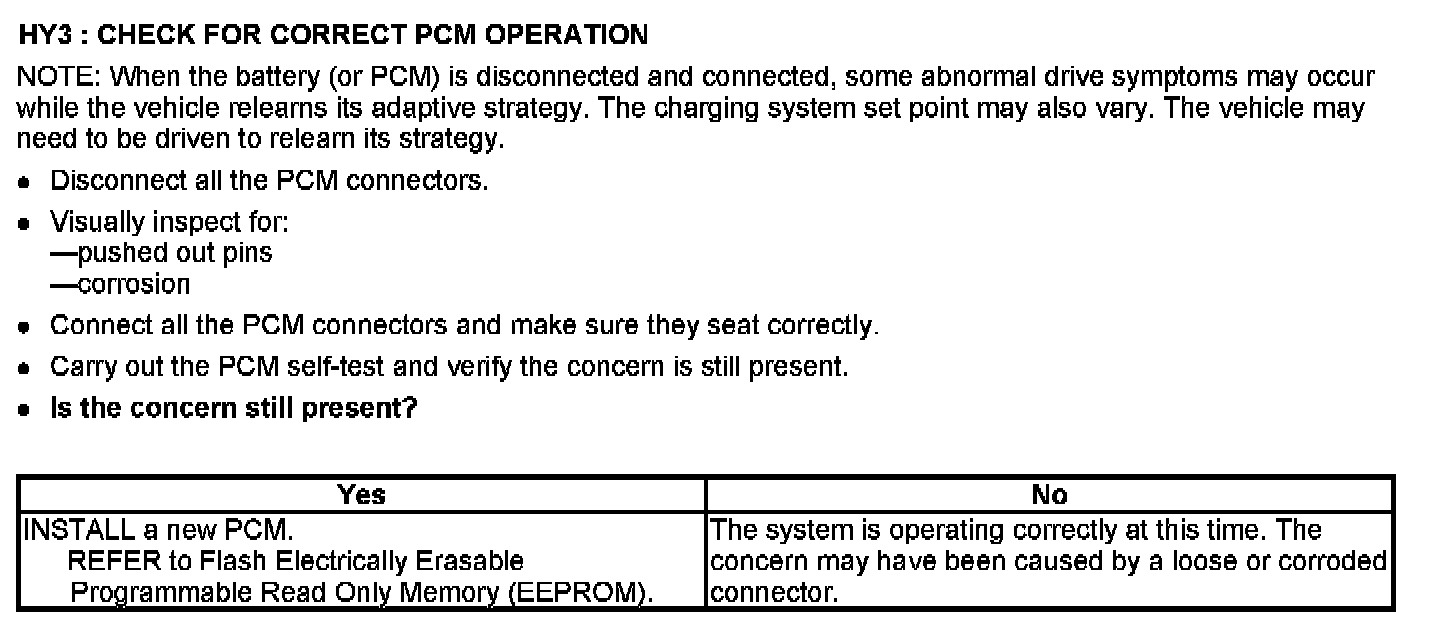

HY3:
