General Specifications
General Specifications

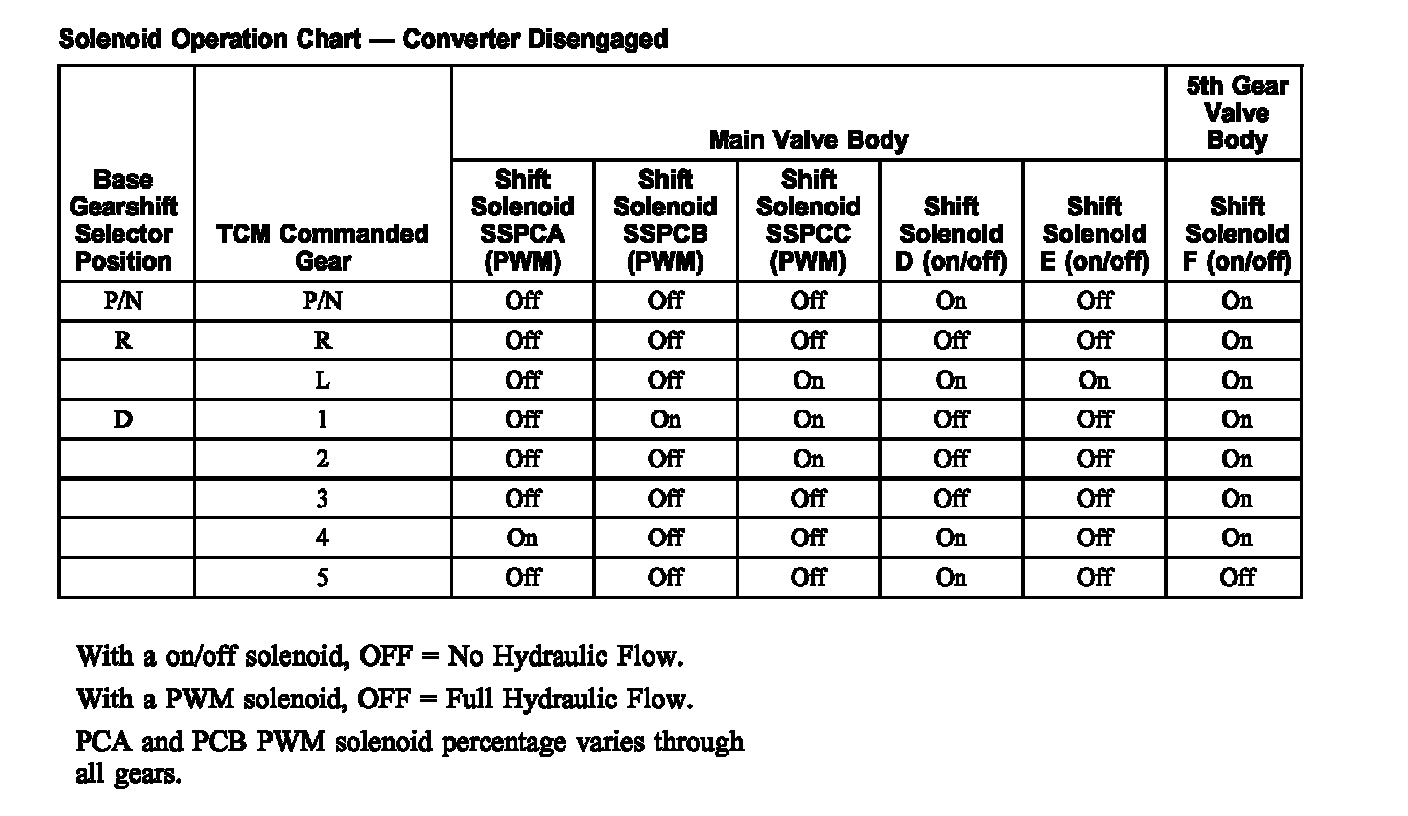

Solenoid Operation Chart - Converter Disengaged:

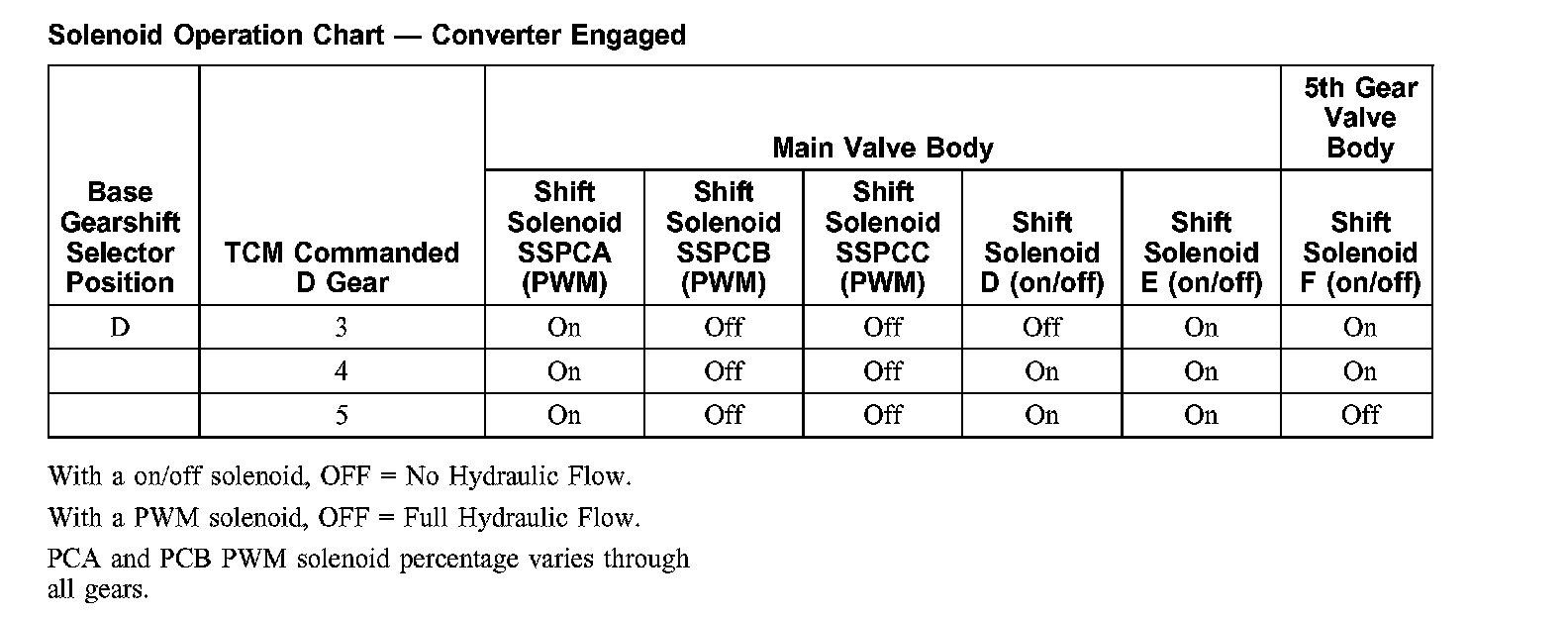

Solenoid Operation Chart - Converter Engaged:
