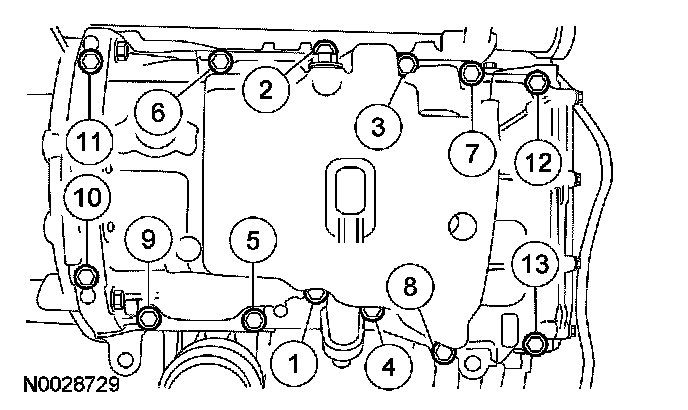

Oil Pan, Engine





Oil pan bolts 25 Nm (18 ft. lbs.)
Oil pan to bell housing bolts 48 Nm (35 ft. lbs.).
