System Specifications

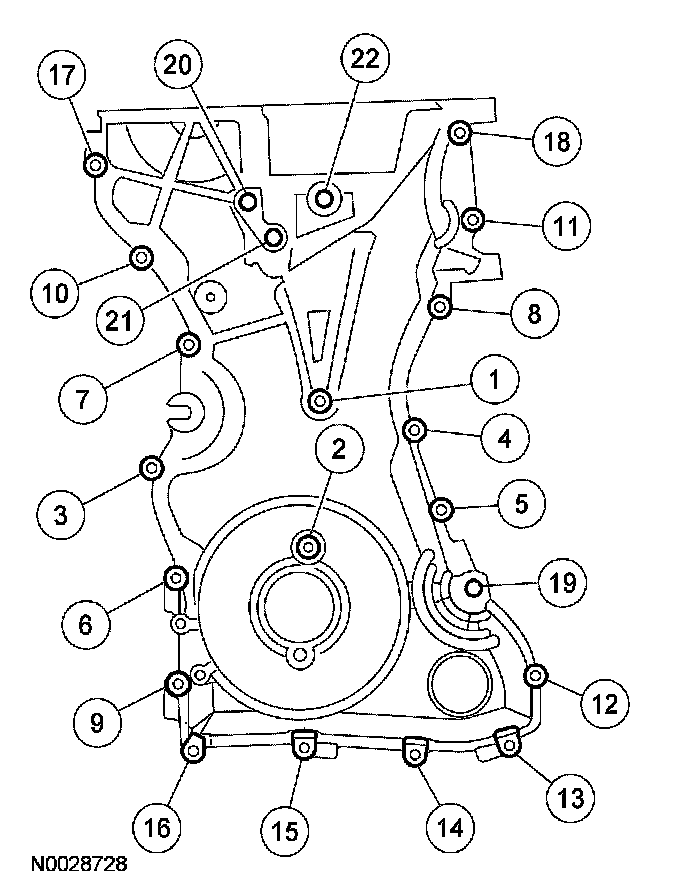

Engine front cover bolts
8-mm bolts 10 Nm (89 inch lbs.)
13-mm bolts 48 Nm (35 ft. lbs.)

Crankshaft Pulley Bolt

Do not reuse the crankshaft pulley bolt.

First pass 100 Nm (74 ft. lbs.).
Final pass tighten 90° (1/4 turn)
